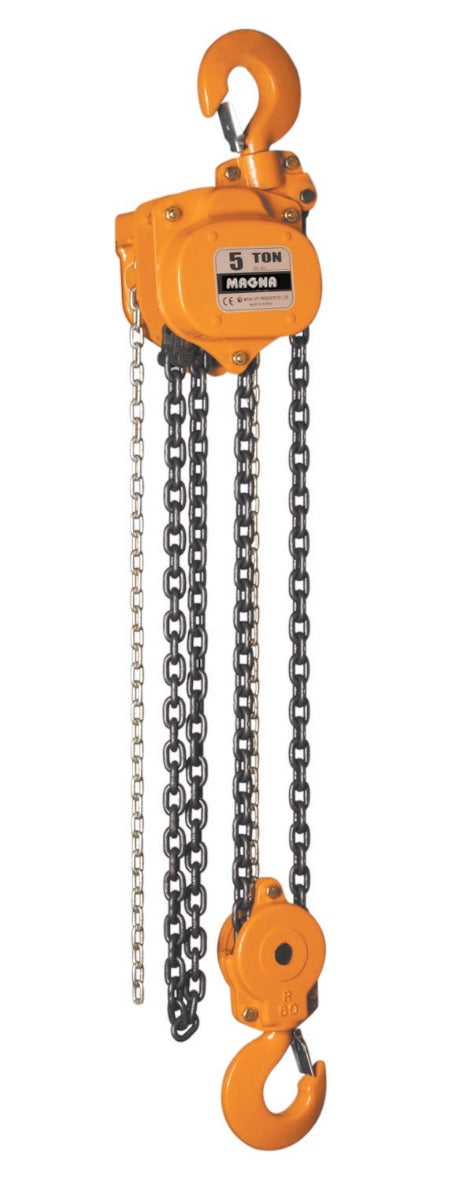

MAGNA Lifting Products 5 Ton Chain Hoist, 20 ft. Lift CH50020

The MAGNA CH50020 is a heavy-duty 5 Ton (11,000 lbs) manual hoist with an extended 20-foot lift, designed for large-scale industrial projects. It utilizes a 2-fall Grade 100 chain system to lift heavy machinery and structural elements in high-bay facilities. The extra reach allows operators to manage lifts safely from the ground in tall buildings.

This hoist is built for durability with a stamped steel housing and accessible components for maintenance. The large mechanical brake ensures load safety, and the -45°C grease allows for operation in cold conditions. With a 150% proof load test, the CH50020 offers the reliability and power needed for critical heavy lifting tasks.

Features & Benefits

• High Capacity Reach: 20-foot lift for 11,000 lb loads.
• Grade 100 Chain: Strong 2-fall system for safety.
• Robust Design: Steel chassis withstands industrial use.
• Repairable: Easy maintenance lowers ownership costs.
• All-Weather: -49°F rated grease for versatility.
• Safety Assured: Proof tested to 16,500 lbs (150% WLL).

Compatible Accessories: Chain Bag, Lug Mount Attachment, Zinc Plated Load Chain, Slip Clutch, PTR500 (5 Ton Plain Trolley), GTR500 (5 Ton Geared Trolley), BC500P/BC500RE (5 Ton Beam Clamps), ULBC500F/FW/S (5 Ton Universal Beam Clamps)

Specifications

• Model Number: CH50020
• Working Load Limit (WLL): 5 Ton (11,000 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 2
• Pull to Lift Full Load: 86 lbs
• Headroom (Dimension C): 25.00 in.
• Hook Throat Opening (Dimension G): 1.81 in.
• Net Weight: 118.0 lbs
