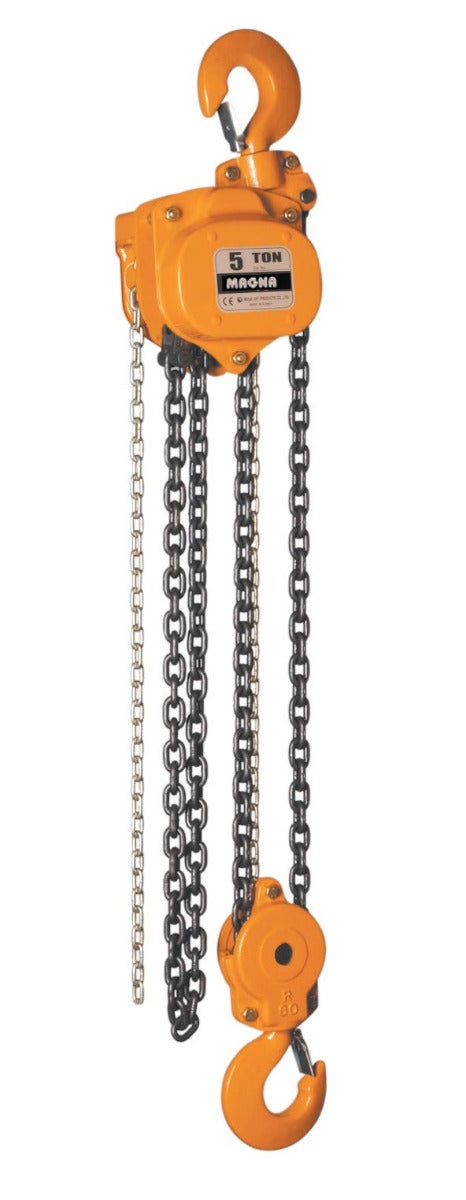

MAGNA Lifting Products 5 Ton Chain Hoist, 10 ft. Lift CH50010

Engineered for the heaviest industrial environments, the MAGNA CH50010 delivers a massive 5 Tons (11,000 lbs) of lifting capacity. With a 10-foot lift, it is the tool of choice for plant maintenance, turbine installation, and heavy structural assembly. It utilizes a 2-fall configuration of premium Grade 100 alloy chain, providing a superior strength-to-weight ratio compared to standard Grade 80 competitors.

This hoist is built to be easily maintained, with a fully repairable chassis and accessible braking system. The large Weston-style brake ensures positive load control, while the spur gear transmission keeps the hand pull effort to a reasonable 86 lbs even at full load. Pre-lubricated with -45°C grease, the CH50010 is ready for deployment in unheated warehouses or outdoor construction sites immediately out of the box.

Features & Benefits

• Heavy Industrial Power: Lifts 11,000 lbs with a robust 2-fall Grade 100 chain system.
• Premium Chain: Grade 100 alloy offers superior strength and reduced weight.
• Repairable Design: Bolt-together assembly allows for cost-effective maintenance.
• Reliable Braking: Heavy-duty mechanical brake holds heavy loads securely.
• All-Weather: Low-temperature grease ensures performance down to -49°F.
• Overload Safety: Tested to 150% of rated capacity (16,500 lbs) for peace of mind.

Compatible Accessories: Chain Bag, Lug Mount Attachment, Zinc Plated Load Chain, Slip Clutch, PTR500 (5 Ton Plain Trolley), GTR500 (5 Ton Geared Trolley), BC500P/BC500RE (5 Ton Beam Clamps), ULBC500F/FW/S (5 Ton Universal Beam Clamps)

Specifications

• Model Number: CH50010
• Working Load Limit (WLL): 5 Ton (11,000 lbs)
• Standard Lift: 10 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 2
• Pull to Lift Full Load: 86 lbs
• Headroom (Dimension C): 25.00 in.
• Hook Throat Opening (Dimension G): 1.81 in.
• Net Weight: 86.0 lbs
