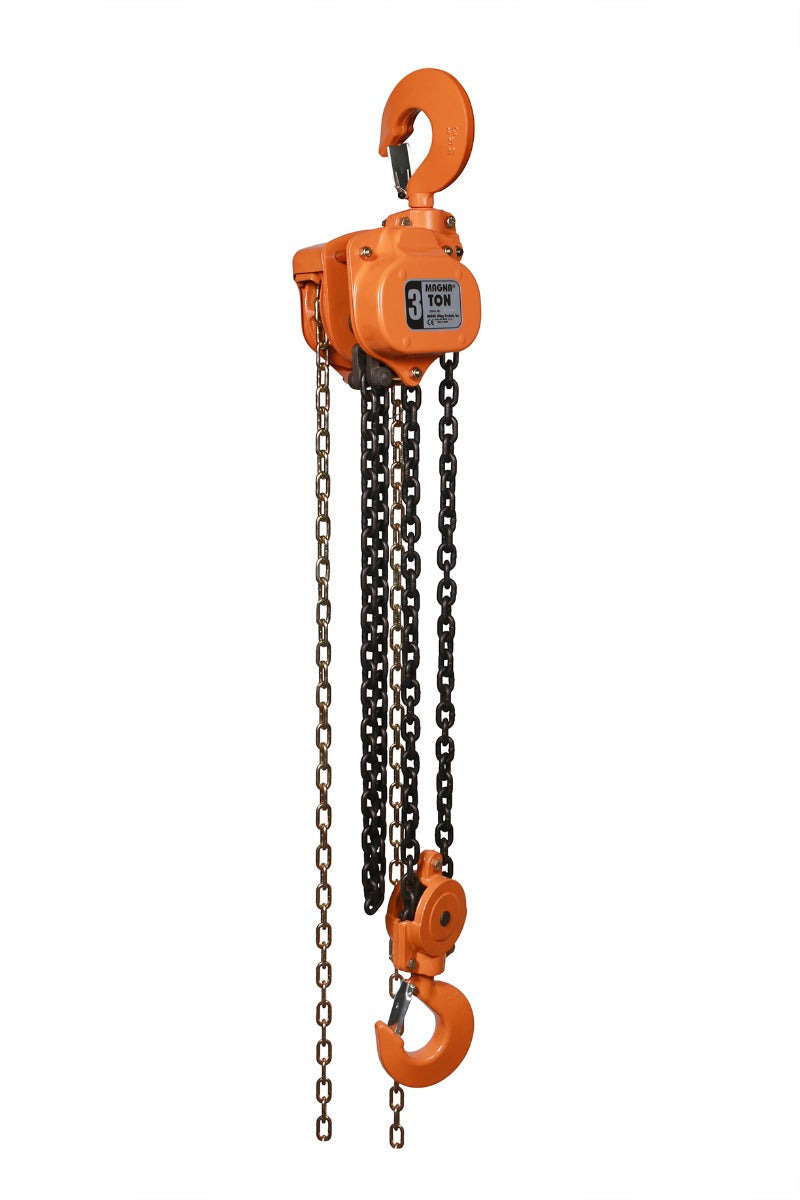

MAGNA Lifting Products 3 Ton Chain Hoist, 20 ft. Lift (Single Fall) CH30020SF

The MAGNA CH30020SF combines 3 Ton (6,600 lbs) capacity with a 20-foot lift and a single-fall chain design. Using high-strength Grade 100 alloy chain, it eliminates the bottom block, making the hoist lighter and less prone to chain tangling over the long 20-foot reach. This model is perfect for mobile rigging and construction where efficiency and high reach are required.

Designed for professional performance, the CH30020SF features a rugged steel body and cold-weather lubrication for -49°F operation. The single-fall configuration allows for faster deployment and operation compared to double-fall units. Proof tested to 150% capacity, it ensures safe and reliable lifting for heavy loads in high places.

Features & Benefits

• Efficient High Reach: 20-foot lift with single-fall speed.
• Grade 100 Chain: Premium alloy reduces weight and bulk.
• Tangle Resistant: Single line prevents twists at height.
• Durable Build: Steel housing for tough environments.
• Cold Ready: Operates down to -45°C (-49°F).
• Safety Certified: Meets ANSI standards with 150% test.

Compatible Accessories: Chain Bag, Lug Mount Attachment, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Slip Clutch, PTR300 (3 Ton Plain Trolley), GTR300 (3 Ton Geared Trolley), BC300P/BC300RE (3 Ton Beam Clamps), ULBC300F/FW/S (3 Ton Universal Beam Clamps)

Specifications

• Model Number: CH30020SF
• Working Load Limit (WLL): 3 Ton (6,600 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 1
• Pull to Lift Full Load: 79 lbs
• Headroom (Dimension C): 25.00 in.
• Hook Throat Opening (Dimension G): 1.69 in.
• Net Weight: 76.0 lbs
