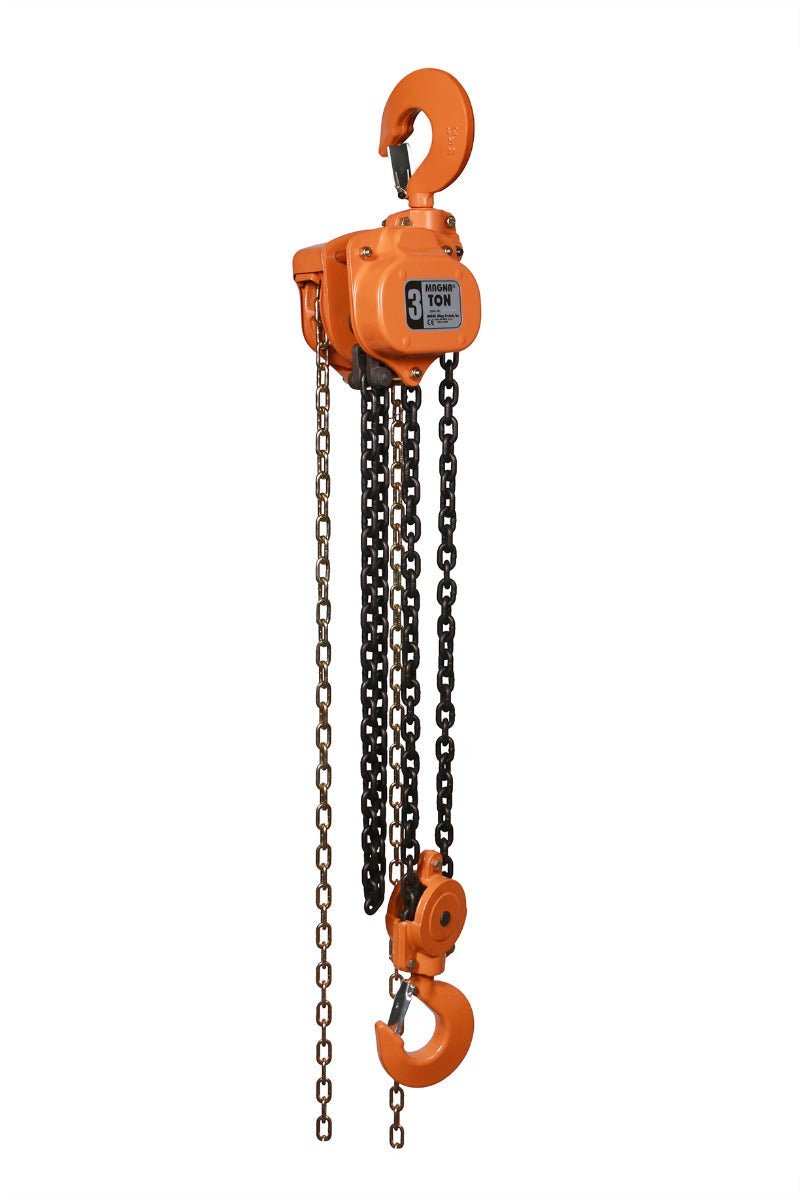

MAGNA Lifting Products 3 Ton Chain Hoist, 15 ft. Lift CH30015

The MAGNA CH30015 is a robust 3 Ton (6,600 lbs) manual hoist designed for heavy lifting in high-bay environments. Its 15-foot lift capability makes it ideal for positioning large equipment and structural components in taller facilities. The double-fall configuration of Grade 80 chain provides excellent load stability and reduced chain stress during heavy lifts.

This hoist is engineered for durability and ease of maintenance, featuring a stamped steel housing and fully accessible components. The mechanical load brake offers redundant safety with double pawls, and the low-temperature grease ensures smooth operation in cold climates. Tested to 150% of its rated capacity, the CH30015 provides the reliability needed for critical industrial applications.

Features & Benefits

• High Reach & Capacity: 15-foot lift with 6,600 lb working load limit.
• Stable Lifting: Double-fall chain design ensures smooth load control.
• Rugged Housing: All-steel construction for maximum durability.
• Serviceable: Repairable design lowers long-term ownership costs.
• All-Weather: Functions in temperatures as low as -45°C (-49°F).
• Safety Assured: 150% proof load tested and ANSI compliant.

Compatible Accessories: Chain Bag, Lug Mount Attachment, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Slip Clutch, PTR300 (3 Ton Plain Trolley), GTR300 (3 Ton Geared Trolley), BC300P/BC300RE (3 Ton Beam Clamps), ULBC300F/FW/S (3 Ton Universal Beam Clamps)

Specifications

• Model Number: CH30015
• Working Load Limit (WLL): 3 Ton (6,600 lbs)
• Standard Lift: 15 ft.
• Load Chain Dimensions: 7.1 x 21.0 mm
• Load Chain Grade: Grade 80
• Number of Falls: 2
• Pull to Lift Full Load: 77 lbs
• Headroom (Dimension C): 18.70 in.
• Hook Throat Opening (Dimension G): 1.69 in.
• Net Weight: 59.6 lbs
