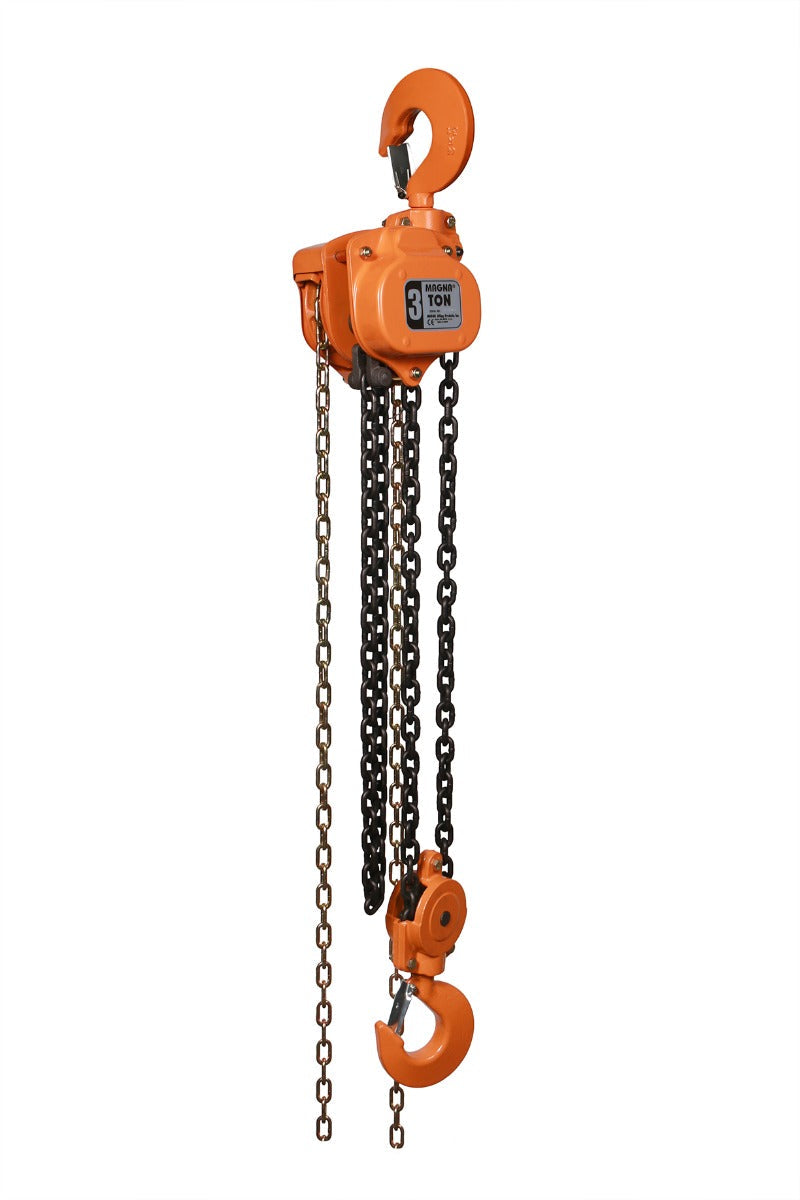

MAGNA Lifting Products 3 Ton Chain Hoist, 10 ft. Lift (Single Fall) CH30010SF

The MAGNA CH30010SF revolutionizes the 3-ton category by utilizing a "Single Fall" design. By upgrading the load chain to high-strength Grade 100 alloy, this hoist eliminates the need for a bottom sheave block, drastically reducing weight and complexity. With a 10-foot lift, this model is preferred by mobile riggers and construction crews who require the power of a 3-ton unit without the bulk of traditional double-fall hoists.

The single-fall configuration minimizes the risk of chain twisting and capsizing, a common issue in multi-fall hoists during rapid setup. It offers 6,600 lbs of lifting capacity while maintaining the rugged steel construction and cold-weather performance (-49°F) characteristic of the MAGNA line. The larger 9.0mm Grade 100 chain provides superior tensile strength and wear resistance.

Features & Benefits

• Single Fall Design: Eliminates bottom block sheave for lighter weight and fewer tangles.
• Grade 100 Chain: Premium high-strength alloy allows 3-ton capacity on a single line.
• Rigging Efficiency: Faster setup and operation compared to double-fall competitors.
• Rugged Build: All-steel housing with high-impact resistance for field use.
• Temperature Resilient: Functions reliably in extreme cold down to -45°C (-49°F).
• Safety Tested: Proof loaded to 150% capacity to ensure absolute reliability.

Compatible Accessories: Chain Bag, Lug Mount Attachment, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Slip Clutch, PTR300 (3 Ton Plain Trolley), GTR300 (3 Ton Geared Trolley), BC300P/BC300RE (3 Ton Beam Clamps), ULBC300F/FW/S (3 Ton Universal Beam Clamps)

Specifications

• Model Number: CH30010SF
• Working Load Limit (WLL): 3 Ton (6,600 lbs)
• Standard Lift: 10 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 1
• Pull to Lift Full Load: 79 lbs
• Headroom (Dimension C): 25.00 in.
• Hook Throat Opening (Dimension G): 1.69 in.
• Net Weight: 57.0 lbs
