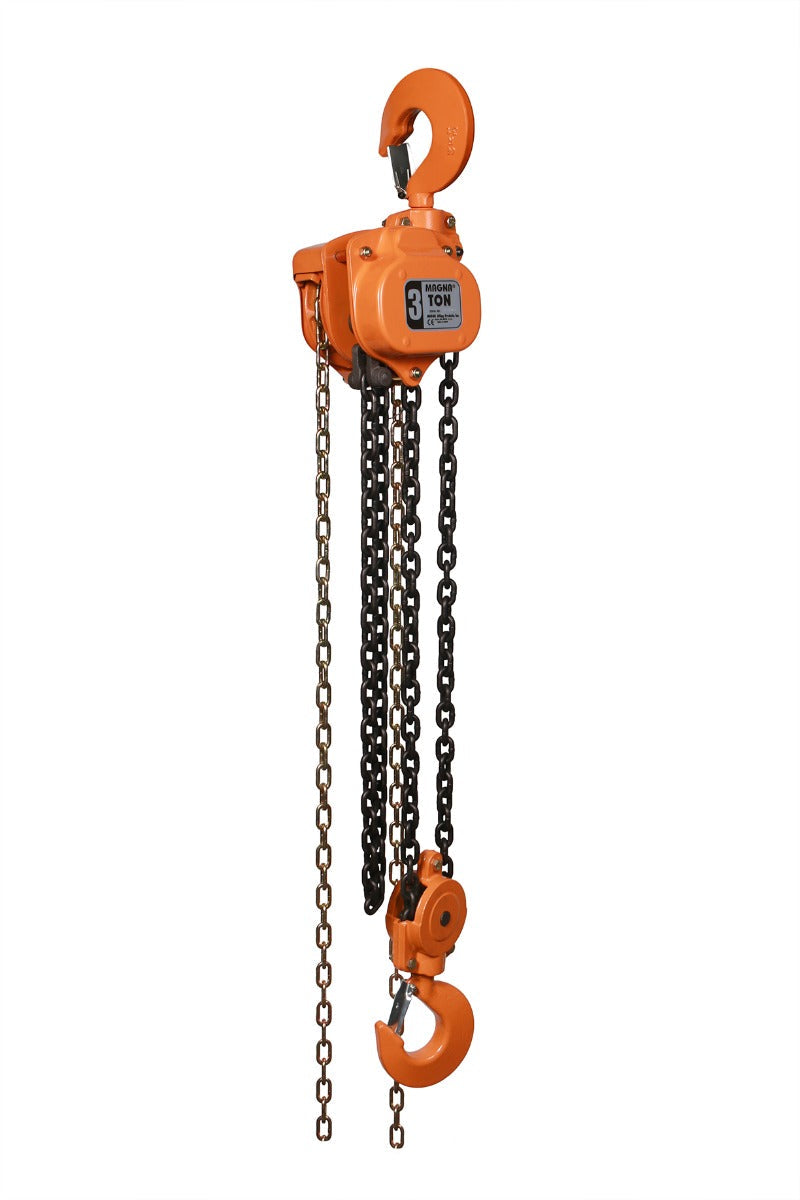

MAGNA Lifting Products 3 Ton Chain Hoist, 10 ft. Lift CH30010

The MAGNA CH30010 is a powerhouse 3 Ton (6,600 lbs) manual chain hoist, utilizing a double-fall configuration of Grade 80 chain to safely manage heavy industrial loads. The 10-foot lift makes it suitable for standard bay heights in manufacturing plants, shipyards, and heavy equipment repair shops where stability and load control are paramount.

Safety is central to the CH30010's design. It features a Weston-style load brake with a large surface area and double pawls for redundant load holding. The gear case is sealed against dust and moisture but remains fully accessible for maintenance, adhering to MAGNA’s philosophy of repairability. Despite its high capacity, the efficient gear ratio keeps the hand chain pull to a manageable 77 lbs, reducing operator strain during heavy lifts.

Features & Benefits

• Heavy Lifting: 6,600 lb capacity via a stable double-fall chain configuration.
• Reliable Braking: Large Weston-style brake with double pawls ensures load safety.
• Serviceable: Fully repairable steel design extends the tool's ROI and lifecycle.
• Extreme Durability: Load tested to 150% of capacity (9,900 lbs) for maximum safety.
• Cold Ready: Lubricated for operation in environments down to -45°C (-49°F).
• Quality Chain: Equipped with corrosion-resistant Grade 80 alloy load chain.

Compatible Accessories: Chain Bag, Lug Mount Attachment, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Slip Clutch, PTR300 (3 Ton Plain Trolley), GTR300 (3 Ton Geared Trolley), BC300P/BC300RE (3 Ton Beam Clamps), ULBC300F/FW/S (3 Ton Universal Beam Clamps)

Specifications

• Model Number: CH30010
• Working Load Limit (WLL): 3 Ton (6,600 lbs)
• Standard Lift: 10 ft.
• Load Chain Dimensions: 7.1 x 21.0 mm
• Load Chain Grade: Grade 80
• Number of Falls: 2
• Pull to Lift Full Load: 77 lbs
• Headroom (Dimension C): 18.70 in.
• Hook Throat Opening (Dimension G): 1.69 in.
• Net Weight: 49.0 lbs
