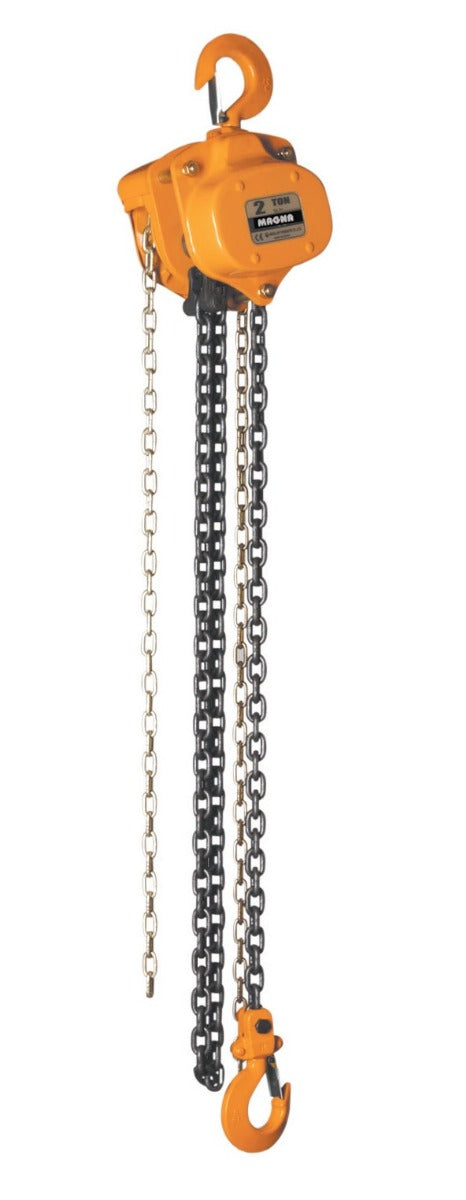

MAGNA Lifting Products 2 Ton Chain Hoist, 20 ft. Lift CH20020

With 2 Tons (4,400 lbs) of capacity and a 20-foot lift, the MAGNA CH20020 is the go-to hoist for heavy-duty lifting in high-ceiling environments. It is widely used in manufacturing, construction, and maintenance for lifting engines, steel beams, and machinery components to elevated positions. The extended chain allows for versatile rigging options in large facilities.

The hoist features a rugged steel body and a single-fall Grade 80 chain design for efficiency. Its reliable braking system and low-temperature grease ensure consistent performance in demanding conditions, including cold storage and outdoor sites. Fully repairable and tested to 150% capacity, the CH20020 is a durable workhorse for serious lifting.

Features & Benefits

• High Capacity Reach: 20-foot lift for 4,400 lb loads.
• Industrial Build: Stamped steel housing for durability.
• Efficient Lift: Single-fall chain design for smooth operation.
• Cold Weather: -49°F rated grease for all climates.
• Serviceable: Easy to repair and maintain.
• Safety Certified: Proof tested to 150% of WLL.

Compatible Accessories: Chain Bag, Lug Mount Attachment, Zinc Plated Load Chain, Slip Clutch, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamps)

Specifications

• Model Number: CH20020
• Working Load Limit (WLL): 2 Ton (4,400 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 7.9 x 23.0 mm
• Load Chain Grade: Grade 80
• Number of Falls: 1
• Pull to Lift Full Load: 75 lbs
• Headroom (Dimension C): 16.54 in.
• Hook Throat Opening (Dimension G): 1.46 in.
• Net Weight: 58.8 lbs
