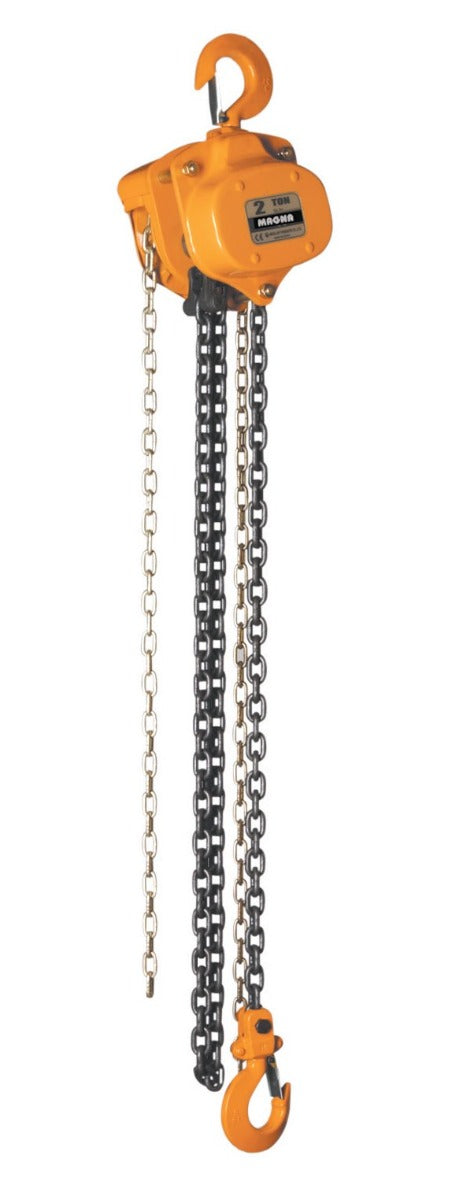

MAGNA Lifting Products 2 Ton Chain Hoist, 15 ft. Lift CH20015

With 2 Tons (4,400 lbs) of lifting force and a 15-foot lift, the MAGNA CH20015 is a staple for heavy manufacturing and maintenance departments. The extended chain length allows for operation in facilities with high trusses, enabling the lifting of heavy machinery, dies, and structural steel from the ground level to elevated platforms.

The hoist features a rugged, impact-resistant steel housing and a reliable Weston-style mechanical brake. Factory packed with low-temperature grease, it ensures consistent performance in unheated warehouses or outdoor job sites down to -45°C. The single-fall Grade 80 chain design keeps the unit relatively compact while delivering substantial lifting power.

Features & Benefits

• Heavy Duty Reach: 15-foot lift for high-clearance industrial rigging.
• 4,400 lb Capacity: Suitable for a wide range of heavy lifting tasks.
• Durable Build: Repairable steel chassis protects internal mechanisms.
• Low Effort: Efficient gearing requires only 75 lbs of hand pull.
• Cold Performance: -49°F rated grease for all-weather reliability.
• Certified Safety: Proof tested to 150% of rated capacity.

Compatible Accessories: Chain Bag, Lug Mount Attachment, Zinc Plated Load Chain, Slip Clutch, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamps)

Specifications

• Model Number: CH20015
• Working Load Limit (WLL): 2 Ton (4,400 lbs)
• Standard Lift: 15 ft.
• Load Chain Dimensions: 7.9 x 23.0 mm
• Load Chain Grade: Grade 80
• Number of Falls: 1
• Pull to Lift Full Load: 75 lbs
• Headroom (Dimension C): 16.54 in.
• Hook Throat Opening (Dimension G): 1.46 in.
• Net Weight: 50.9 lbs
