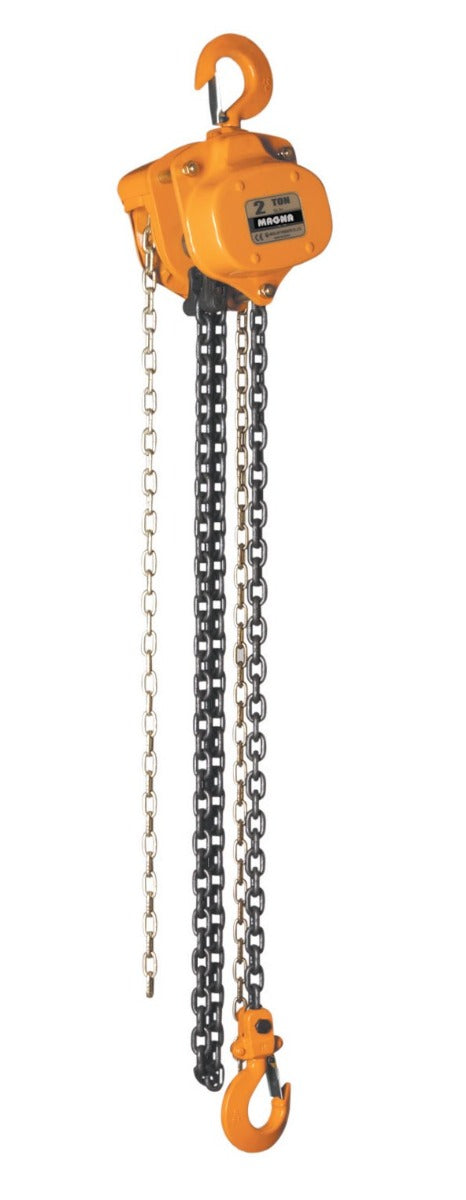

MAGNA Lifting Products 2 Ton Chain Hoist, 10 ft. Lift CH20010

The MAGNA CH20010 is a heavy-duty 2 Ton (4,400 lbs) manual hoist designed for rigorous industrial tasks such as mold setting, engine pulling, and steel beam placement. With a standard 10-foot lift, it integrates seamlessly into low-to-medium headroom environments, providing exceptional lifting power in a manageable, single-fall chain configuration.

This model is engineered for minimal operator fatigue, requiring only 75 lbs of pull force to lift full capacity thanks to its precision-machined gear train. The unit is factory-packed with extreme pressure, low-temperature grease, ensuring the brake and gears function instantly even in freezing conditions down to -45°C. The Grade 80 load chain is zinc-plated for corrosion resistance, extending the service life of the hoist in damp or humid facilities.

Features & Benefits

• High Capacity: Lifts 4,400 lbs efficiently with a single strand of heavy-duty chain.
• Low Effort: Precision gearing reduces hand pull force to just 75 lbs at full load.
• Durable Housing: Stamped steel construction protects vital components from impact.
• All-Weather Lube: Operates flawlessly in temperatures as low as -45°C (-49°F).
• ANSI Compliant: Meets ASME B30.16 standards with a 150% proof load test.
• Secure Rigging: Features heavy-duty forged hooks with 360-degree swivel rotation.

Compatible Accessories: Chain Bag, Lug Mount Attachment, Zinc Plated Load Chain, Slip Clutch, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamps)

Specifications

• Model Number: CH20010
• Working Load Limit (WLL): 2 Ton (4,400 lbs)
• Standard Lift: 10 ft.
• Load Chain Dimensions: 7.9 x 23.0 mm
• Load Chain Grade: Grade 80
• Number of Falls: 1
• Pull to Lift Full Load: 75 lbs
• Headroom (Dimension C): 16.54 in.
• Hook Throat Opening (Dimension G): 1.46 in.
• Net Weight: 43.0 lbs
