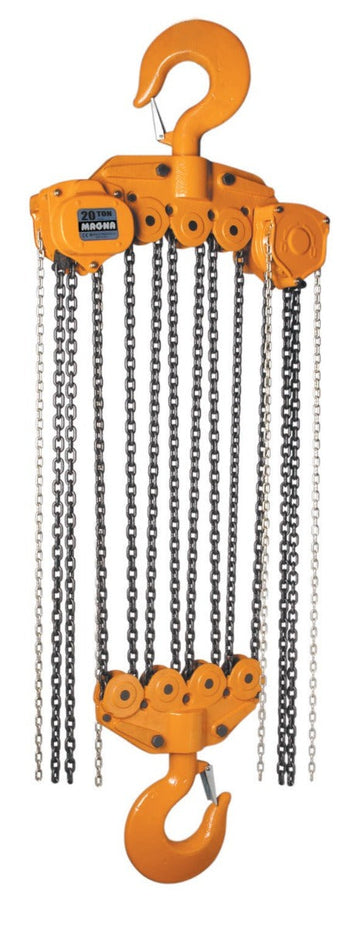

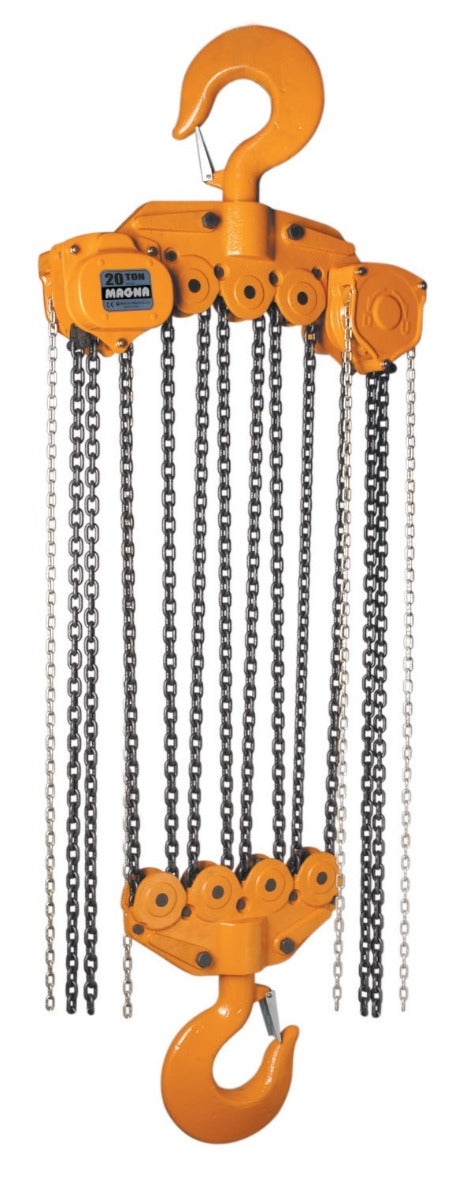

MAGNA Lifting Products 20 Ton Chain Hoist, 20 ft. Lift CH200020

The MAGNA CH200020 represents the ultimate in manual lifting capability, providing 20 Tons (44,000 lbs) of capacity with a substantial 20-foot lift. Engineered for the largest industrial tasks, such as bridge construction and heavy equipment assembly, it uses an 8-fall Grade 100 chain system to distribute massive weights safely. The extended reach allows for versatile operation in large-scale facilities.

Built with a heavy-duty stamped steel housing and premium low-temperature grease, the CH200020 withstands extreme environments and operates smoothly down to -49°F. The massive hook opening accommodates large rigging gear, and the 150% proof load test guarantees safety. This hoist is the definitive solution for the heaviest and highest manual lifts.

Features & Benefits

• Ultimate High Reach: 20-foot lift for 44,000 lb loads.
• Grade 100 Chain: 8-fall configuration for extreme safety.
• Heavy Duty Build: Steel housing for industrial durability.
• Cold Weather: -49°F rated grease for all climates.
• Safety Certified: Proof tested to 66,000 lbs.
• Precise Positioning: Micro-control for massive loads.

Compatible Accessories: Zinc Plated Load Chain, Slip Clutch, PTR2000 (20 Ton Plain Trolley), GTR2000 (20 Ton Geared Trolley), ULBC2000FW (20 Ton Universal Beam Clamp)

Specifications

• Model Number: CH200020
• Working Load Limit (WLL): 20 Ton (44,000 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 8
• Pull to Lift Full Load: 90 lbs x 2
• Headroom (Dimension C): 34.25 in.
• Hook Throat Opening (Dimension G): 3.54 in.
• Net Weight: 482.0 lbs
