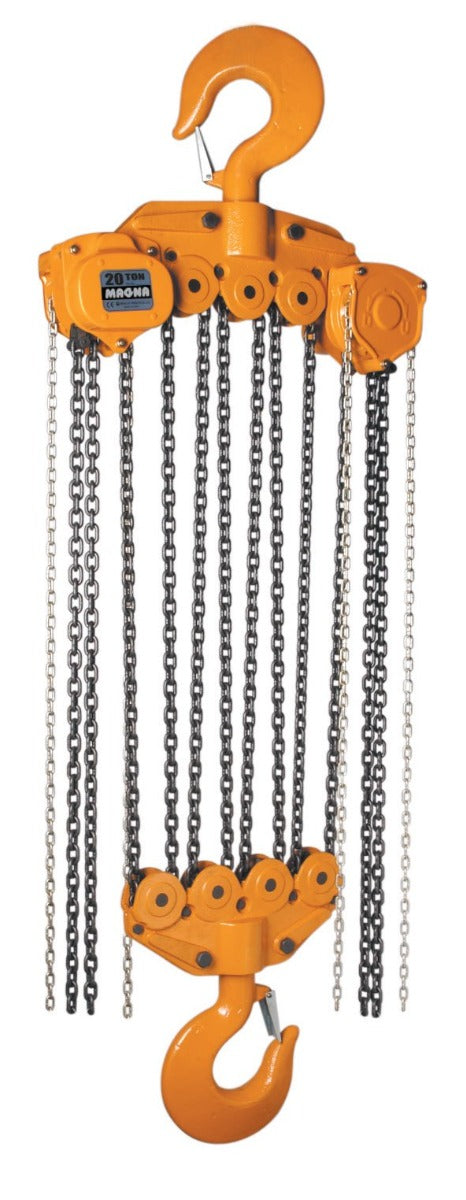

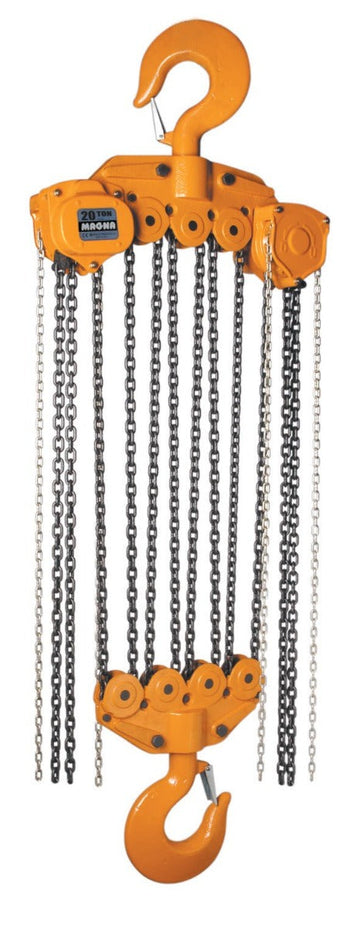

MAGNA Lifting Products 20 Ton Chain Hoist, 10 ft. Lift CH200010

The MAGNA CH200010 represents the pinnacle of manual lifting capability, delivering a massive 20 Ton (44,000 lbs) working load limit. With a 10-foot lift, this hoist is engineered for the most substantial rigging tasks imaginable, such as bridge segment placement, locomotive maintenance, and heavy marine construction. It employs an 8-fall configuration of high-grade Grade 100 chain to distribute the colossal weight safely.

Built to the same exacting standards as the rest of the MAGNA line, this unit features a repairable steel chassis and premium low-temperature lubrication. The hook throat opening is a massive 3.54 inches, accommodating large slings and shackles. Every unit is subjected to a 150% proof load test (66,000 lbs), guaranteeing that it meets the strictest safety requirements for critical infrastructure work.

Features & Benefits

• Ultimate Capacity: 44,000 lb lifting capability for the heaviest manual applications.
• Grade 100 Chain: 8-fall configuration utilizes premium alloy for maximum safety.
• Heavy Duty Build: Stamped steel housing withstands the rigors of heavy industry.
• Precision Control: Allows for micro-positioning of massive loads.
• Extreme Environment: Rated for operation in temperatures as low as -49°F.
• Safety Certified: Load tested to 150% capacity to exceed ANSI standards.

Compatible Accessories: Zinc Plated Load Chain, Slip Clutch, PTR2000 (20 Ton Plain Trolley), GTR2000 (20 Ton Geared Trolley), ULBC2000FW (20 Ton Universal Beam Clamp)

Specifications

• Model Number: CH200010
• Working Load Limit (WLL): 20 Ton (44,000 lbs)
• Standard Lift: 10 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 8
• Pull to Lift Full Load: 90 lbs x 2 (Dual Chain)
• Headroom (Dimension C): 34.25 in.
• Hook Throat Opening (Dimension G): 3.54 in.
• Net Weight: 403.0 lbs
