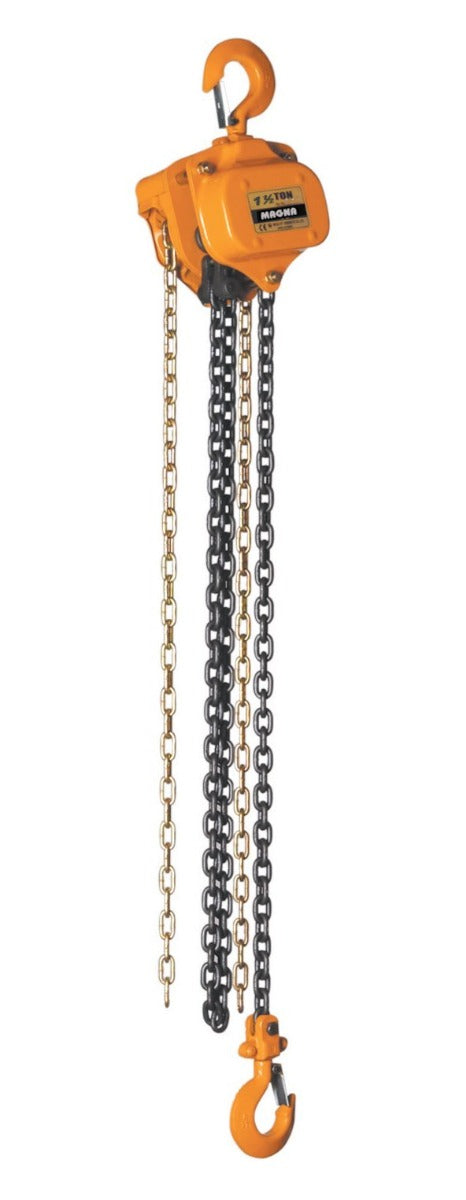

MAGNA Lifting Products 1.5 Ton Chain Hoist, 20 ft. Lift CH15020

The MAGNA CH15020 provides 1.5 Tons (3,300 lbs) of capacity with an extended 20-foot lift, catering to applications that require both power and reach. This hoist is perfect for lifting equipment to second-story levels or servicing tall machinery in industrial plants. The 20-foot chain length ensures that operators can safely control the lift from the ground.

Featuring a robust steel housing and Grade 80 alloy chain, the CH15020 is designed for durability and ease of maintenance. The cold-weather lubrication guarantees smooth performance in temperatures as low as -45°C. With 360-degree swiveling hooks and a 150% proof load test, this hoist offers safe and reliable lifting for intermediate loads.

Features & Benefits

• Versatile Reach: 20-foot lift for multi-level operations.
• Mid-Range Power: 3,300 lb capacity for substantial loads.
• Durable Design: Steel chassis resists impact and wear.
• Smooth Action: Machined gears and quality grease.
• Cold Capable: Works in -49°F environments.
• Safety Assured: ANSI compliant with 150% overload test.

Compatible Accessories: Chain Bag, Lug Mount Attachment, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Slip Clutch, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamps)

Specifications

• Model Number: CH15020
• Working Load Limit (WLL): 1.5 Ton (3,300 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 7.1 x 21.0 mm
• Load Chain Grade: Grade 80
• Number of Falls: 1
• Pull to Lift Full Load: 75 lbs
• Headroom (Dimension C): 13.39 in.
• Hook Throat Opening (Dimension G): 1.34 in.
• Net Weight: 45.0 lbs
