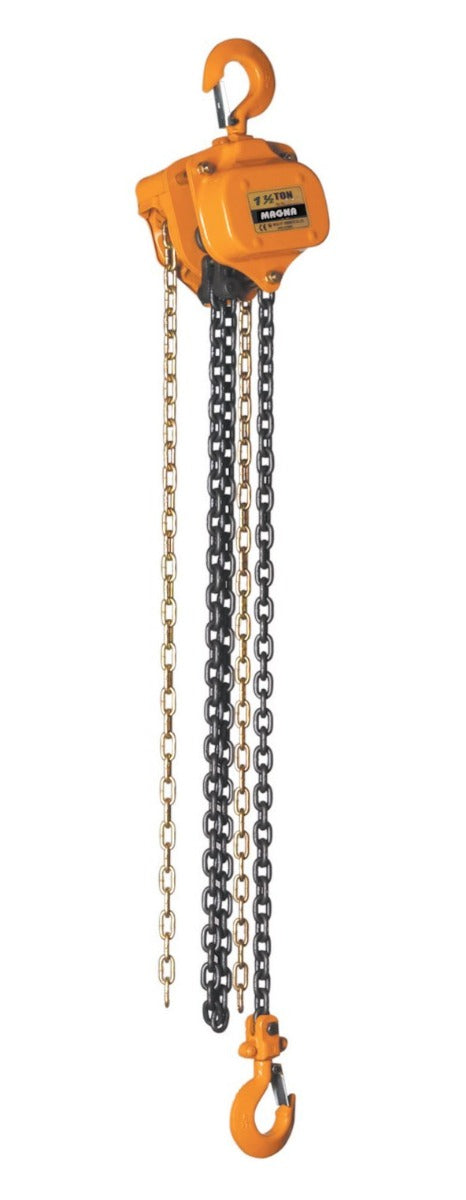

MAGNA Lifting Products 1.5 Ton Chain Hoist, 15 ft. Lift CH15015

The MAGNA CH15015 combines a versatile 1.5 Ton (3,300 lbs) capacity with a 15-foot lift, bridging the gap for applications requiring more power than a 1-ton unit and more reach than a standard hoist. This configuration is frequently used in mezzanine loading operations and equipment installation where vertical travel distance is a key factor.

Constructed with a stamped steel body and high-strength Grade 80 load chain, this hoist is built for resilience. The 360-degree swiveling hooks facilitate easy attachment to overhead beams and loads, while the heavy-duty safety latches ensure secure connection. With its cold-weather grease and fully repairable design, the CH15015 is a long-term investment in safe and efficient material handling.

Features & Benefits

• Versatile Lift: 15-foot chain length for mid-to-high rigging tasks.
• Increased Capacity: 3,300 lb WLL handles intermediate industrial loads.
• Robust Design: Steel housing offers impact resistance and durability.
• Smooth Gearing: Precision machined gears ensure ease of operation.
• Winter Ready: Operates efficiently in temperatures down to -49°F.
• Safety First: 150% proof loaded and ANSI/ASME compliant.

Compatible Accessories: Chain Bag, Lug Mount Attachment, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Slip Clutch, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamps)

Specifications

• Model Number: CH15015
• Working Load Limit (WLL): 1.5 Ton (3,300 lbs)
• Standard Lift: 15 ft.
• Load Chain Dimensions: 7.1 x 21.0 mm
• Load Chain Grade: Grade 80
• Number of Falls: 1
• Pull to Lift Full Load: 75 lbs
• Headroom (Dimension C): 13.39 in.
• Hook Throat Opening (Dimension G): 1.34 in.
• Net Weight: 37.9 lbs
