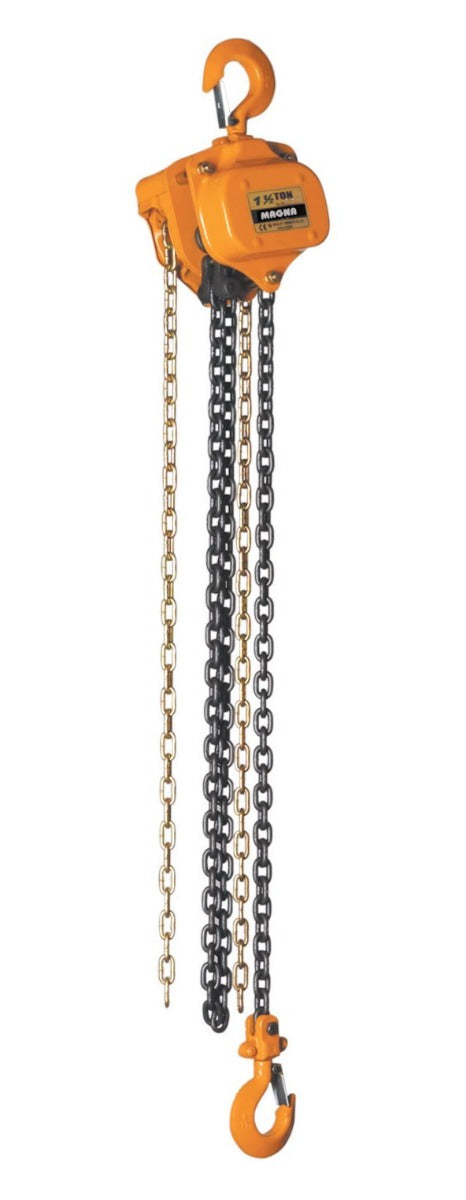

MAGNA Lifting Products 1.5 Ton Chain Hoist, 10 ft. Lift CH15010

Bridging the gap between standard light-duty and heavy-duty rigging, the MAGNA CH15010 delivers 1.5 Tons (3,300 lbs) of capacity, making it essential for handling medium-weight machinery, motors, and structural components. The 10-foot lift length makes it the preferred choice for workshops and manufacturing cells where vertical space is standard but the loads exceed the limits of a 1-ton unit.

The hoist utilizes a robust 7.1mm Grade 80 load chain, heat-treated to resist wear and elongation under stress. Its internal mechanism is shielded by a stamped steel cover, reducing unit weight without sacrificing durability. Equipped with drop-forged alloy steel hooks that swivel 360 degrees, the CH15010 ensures easy and safe attachment to load points, while the heavy-duty latch prevents accidental detachment.

Features & Benefits

• Intermediate Power: 3,300 lb capacity handles loads too heavy for standard 1-ton units.
• Rugged Reliability: Stamped steel frame offers superior protection for gears and bearings.
• Smooth Operation: Machined drive gears and low-temp grease ensure fluid movement.
• Safety First: Drop-forged hooks with wide throat openings and heavy-duty safety latches.
• Field Repairable: Designed with accessible components for easy maintenance and inspection.
• Overload Tested: Each unit is proof tested to 1.5x WLL (4,950 lbs) for maximum security.

Compatible Accessories: Chain Bag, Lug Mount Attachment, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Slip Clutch, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamps)

Specifications

• Model Number: CH15010
• Working Load Limit (WLL): 1.5 Ton (3,300 lbs)
• Standard Lift: 10 ft.
• Load Chain Dimensions: 7.1 x 21.0 mm
• Load Chain Grade: Grade 80
• Number of Falls: 1
• Pull to Lift Full Load: 75 lbs
• Headroom (Dimension C): 13.39 in.
• Hook Throat Opening (Dimension G): 1.34 in.
• Net Weight: 31.0 lbs
