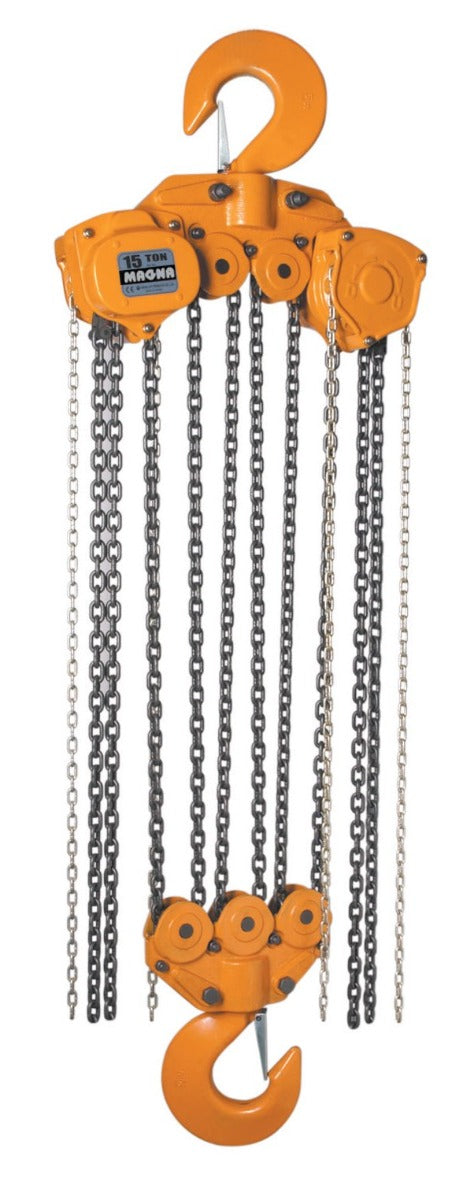

MAGNA Lifting Products 15 Ton Chain Hoist, 20 ft. Lift CH150020

The MAGNA CH150020 delivers 15 Tons (33,000 lbs) of lifting power with an extended 20-foot reach, designed for major infrastructure and industrial projects. Utilizing a 6-fall Grade 100 chain configuration, it handles extreme loads with stability and safety. The 20-foot lift is crucial for operations in high-bay power plants and shipyards.

Featuring a fully repairable steel chassis and cold-weather lubrication, the CH150020 is built for long-term durability in tough conditions. Dual hand chains allow for precise control by two operators if needed. Proof tested to 150% of its rated capacity, this hoist ensures absolute safety for the heaviest and most critical lifts.

Features & Benefits

• Extreme High Lift: 20-foot reach for 33,000 lb loads.
• Grade 100 Alloy: 6-fall chain system for maximum safety.
• Serviceable Design: Easy maintenance extends life.
• Cold Capable: Functions down to -49°F.
• Rigorous Testing: Proof loaded to 49,500 lbs.
• Precise Control: Dual chain operation for load management.

Compatible Accessories: Zinc Plated Load Chain, Slip Clutch, PTR1500 (15 Ton Plain Trolley), GTR1500 (15 Ton Geared Trolley), ULBC1500F/FW (15 Ton Universal Beam Clamps)

Specifications

• Model Number: CH150020
• Working Load Limit (WLL): 15 Ton (33,000 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 6
• Pull to Lift Full Load: 90 lbs x 2
• Headroom (Dimension C): 33.46 in.
• Hook Throat Opening (Dimension G): 3.11 in.
• Net Weight: 428.0 lbs
