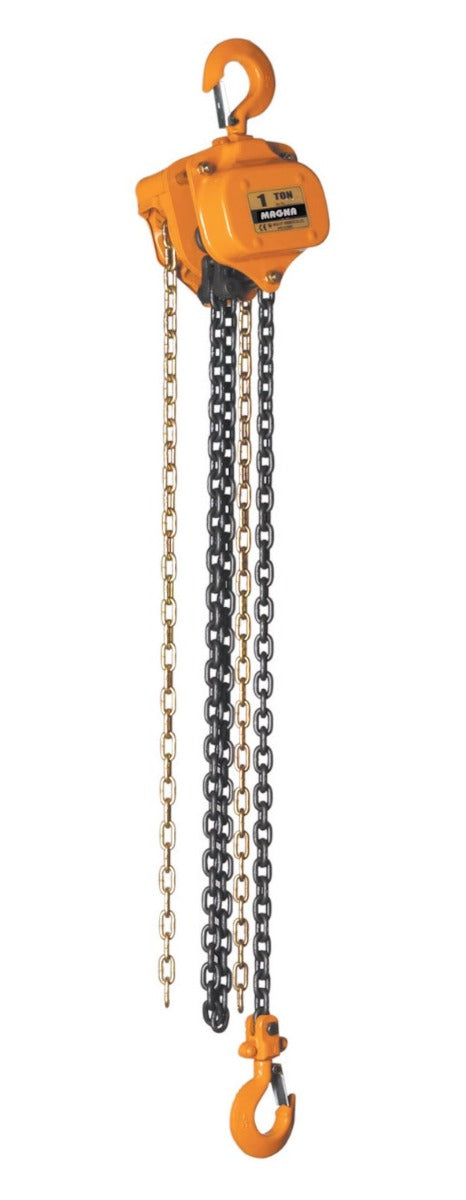

MAGNA Lifting Products 1 Ton Chain Hoist, 20 ft. Lift CH10020

Designed for high-bay industrial use, the MAGNA CH10020 delivers 1 Ton (2,200 lbs) of lifting capacity with a substantial 20-foot lift. This hoist is ideal for warehouses, hangars, and manufacturing plants where loads must be moved from the floor to elevated mezzanines or catwalks. The extended chain length provides the versatility needed for vertical material handling in tall structures.

The CH10020 is built to last with a stamped steel body and high-quality Grade 80 load chain. Its Weston-style brake system offers reliable load holding, and the fully repairable design ensures a long service life. With low-temperature grease allowing operation down to -49°F, this hoist is a dependable choice for diverse and demanding environments.

Features & Benefits

• Extended Lift: 20-foot reach for high-bay operations.
• Industrial Capacity: 2,200 lb WLL for general rigging.
• Rugged Build: Steel housing protects internal gears.
• Reliable Braking: Double pawl system for safety.
• All-Weather: -49°F rated grease for cold climates.
• Certified Safety: Proof tested to 150% capacity.

Compatible Accessories: Chain Bag, Lug Mount Attachment, Zinc Plated Load Chain, Slip Clutch, PTR100 (1 Ton Plain Trolley), GTR100 (1 Ton Geared Trolley), BC100P/BC100RE (1 Ton Beam Clamps)

Specifications

• Model Number: CH10020
• Working Load Limit (WLL): 1 Ton (2,200 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 6.3 x 19.1 mm
• Load Chain Grade: Grade 80
• Number of Falls: 1
• Pull to Lift Full Load: 73 lbs
• Headroom (Dimension C): 12.40 in.
• Hook Throat Opening (Dimension G): 1.18 in.
• Net Weight: 38.4 lbs
