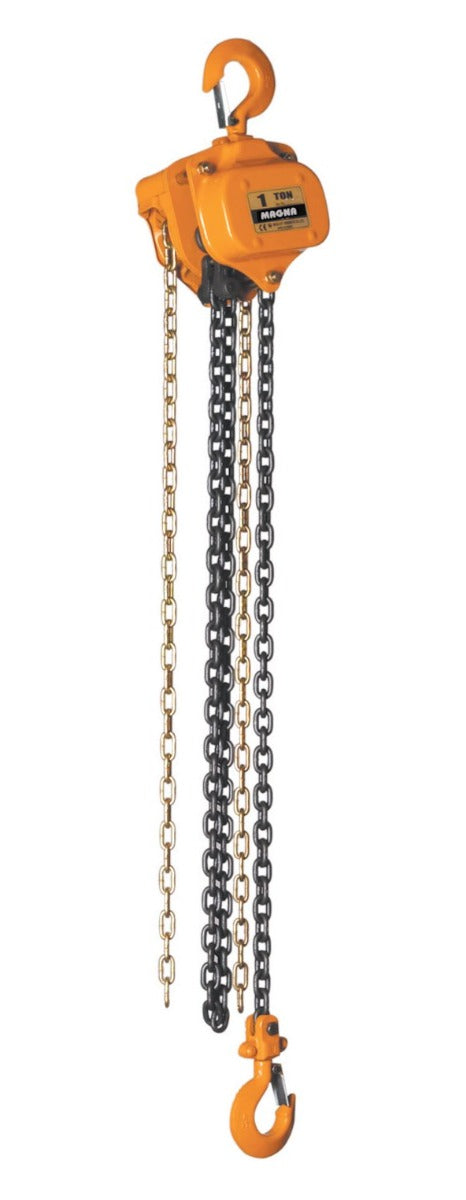

MAGNA Lifting Products 1 Ton Chain Hoist, 15 ft. Lift CH10015

With a 1 Ton (2,200 lbs) capacity and an extended 15-foot lift, the MAGNA CH10015 is tailored for industrial facilities with elevated anchor points. Whether servicing overhead conveyors or lifting engines in high-bay garages, this hoist provides the reach necessary to work safely from the floor. Its rugged steel construction ensures it withstands the bumps and scrapes of daily industrial use.

The hoist features a Weston-style double pawl brake system that engages instantly, providing secure load holding at any height. The Grade 80 load chain is designed for durability and corrosion resistance. Maintenance teams appreciate the fully repairable design, which allows for the replacement of individual components rather than discarding the entire unit, offering a lower total cost of ownership.

Features & Benefits

• High Bay Ready: 15-foot lift allows operation in taller facilities.
• Industrial Strength: 2,200 lb capacity for general rigging and maintenance.
• Durable Construction: Stamped steel housing protects vital gear components.
• Reliable Braking: Double pawl Weston brake ensures load safety.
• All-Climate: -49°F rated grease for outdoor and unheated indoor use.
• ANSI Compliant: Tested to 150% capacity (3,300 lbs) for safety assurance.

Compatible Accessories: Chain Bag, Lug Mount Attachment, Zinc Plated Load Chain, Slip Clutch, PTR100 (1 Ton Plain Trolley), GTR100 (1 Ton Geared Trolley), BC100P/BC100RE (1 Ton Beam Clamps)

Specifications

• Model Number: CH10015
• Working Load Limit (WLL): 1 Ton (2,200 lbs)
• Standard Lift: 15 ft.
• Load Chain Dimensions: 6.3 x 19.1 mm
• Load Chain Grade: Grade 80
• Number of Falls: 1
• Pull to Lift Full Load: 73 lbs
• Headroom (Dimension C): 12.40 in.
• Hook Throat Opening (Dimension G): 1.18 in.
• Net Weight: 32.1 lbs
