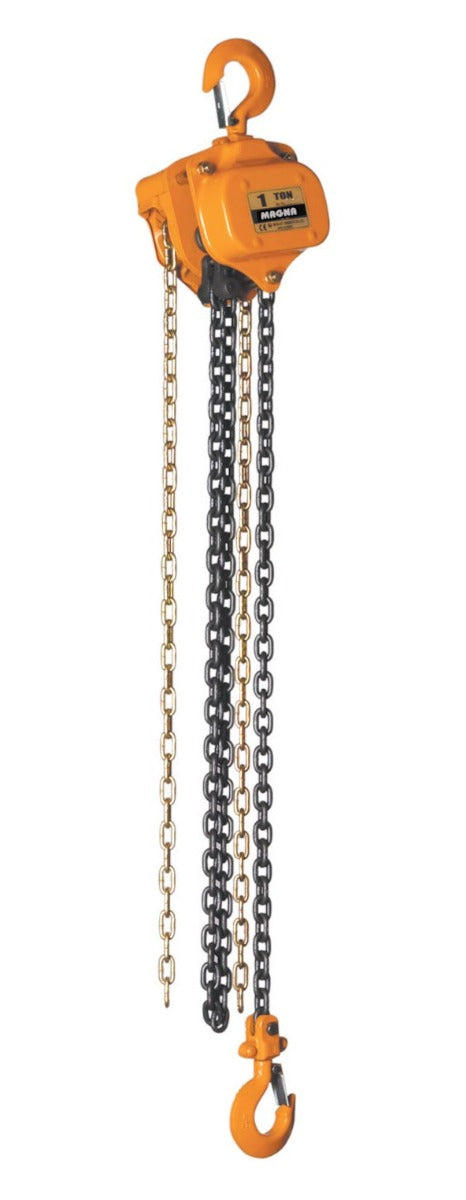

MAGNA 1 Ton Chain Hoist, 10 ft. Lift CH10010
The MAGNA CH10010 serves as the workhorse of the CH series, providing 1 Ton (2,200 lbs) of lifting power for general construction and industrial rigging. With a 10-foot lift, this hoist is optimized for loading docks, assembly lines, and equipment installation in facilities with standard overhead clearance. Its efficient gear ratio allows a single operator to lift a full metric ton with only 73 lbs of hand chain pull.
Built to withstand harsh industrial conditions, the CH10010 features a rugged steel casing that encases machined, case-hardened gears. The Weston-style double pawl brake system provides redundant safety, holding the load securely at any position. Operational in temperatures down to -49°F thanks to premium low-temperature lubrication, this hoist is as effective in outdoor winter projects as it is on the factory floor.
Features & Benefits
- Industrial Capacity: Safely lifts up to 2,200 lbs using a single fall of Grade 80 alloy chain.
- All-Steel Construction: Impact-resistant housing protects internal components from job site damage.
- Enhanced Braking: Large braking surface with double pawl system ensures positive load holding.
- Cold Weather Performance: Operational range extends to -45°C (-49°F) for versatile deployment.
- Serviceable Design: Bolt-together construction allows for complete teardown and part replacement.
- Certified Safety: Load tested to 150% capacity (3,300 lbs) to exceed ANSI/ASME safety codes.
Compatible Accessories: Chain Bag, Lug Mount Attachment, Zinc Plated Load Chain, Slip Clutch, PTR100 (1 Ton Plain Trolley), GTR100 (1 Ton Geared Trolley), BC100P/BC100RE (1 Ton Beam Clamps)
Specifications
- Model Number: CH10010
- Working Load Limit (WLL): 1 Ton (2,200 lbs)
- Standard Lift: 10 ft.
- Load Chain Dimensions: 6.3 x 19.1 mm
- Load Chain Grade: Grade 80
- Number of Falls: 1
- Pull to Lift Full Load: 73 lbs
- Headroom (Dimension C): 12.40 in.
- Hook Throat Opening (Dimension G): 1.18 in.
- Net Weight: 26.0 lbs
