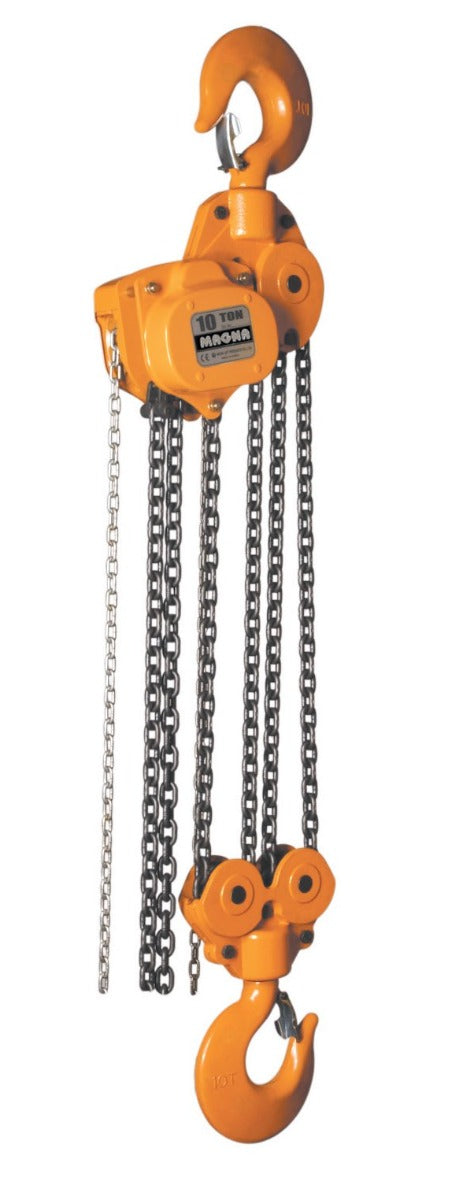

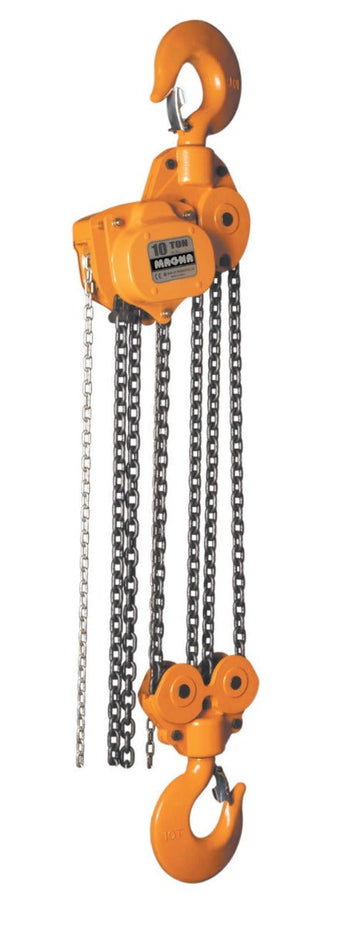

MAGNA Lifting Products 10 Ton Chain Hoist, 20 ft. Lift CH100020

The MAGNA CH100020 is designed for the heaviest high-reach applications, offering 10 Tons (22,000 lbs) of capacity with a 20-foot lift. Essential for power plants and heavy manufacturing, this hoist uses a 4-fall Grade 100 chain system to lift immense loads safely to significant heights. The extended reach ensures operational versatility in large facilities.

Built with a stamped steel housing and low-temperature grease, the CH100020 is ready for harsh environments and cold climates down to -49°F. Its efficient gearing allows for manual operation of 10-ton loads with reasonable effort. Tested to 150% capacity, this hoist provides the ultimate in safety and reliability for critical heavy lifting.

Features & Benefits

• Massive High Reach: 20-foot lift for 22,000 lb loads.
• Grade 100 Chain: 4-fall system for extreme strength.
• Durable Housing: Steel construction ensures longevity.
• Mechanical Efficiency: Optimized gearing for heavy loads.
• All-Weather: -45°C rated grease for reliability.
• Safety Assured: Proof tested to 33,000 lbs.

Compatible Accessories: Lug Mount Attachment, Zinc Plated Load Chain, Slip Clutch, PTR1000 (10 Ton Plain Trolley), GTR1000 (10 Ton Geared Trolley), BC1000P/BC1000RE (10 Ton Beam Clamps), ULBC1000F/S (10 Ton Universal Beam Clamps)

Specifications

• Model Number: CH100020
• Working Load Limit (WLL): 10 Ton (22,000 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 4
• Pull to Lift Full Load: 90 lbs
• Headroom (Dimension C): 29.92 in.
• Hook Throat Opening (Dimension G): 2.36 in.
• Net Weight: 235.0 lbs
