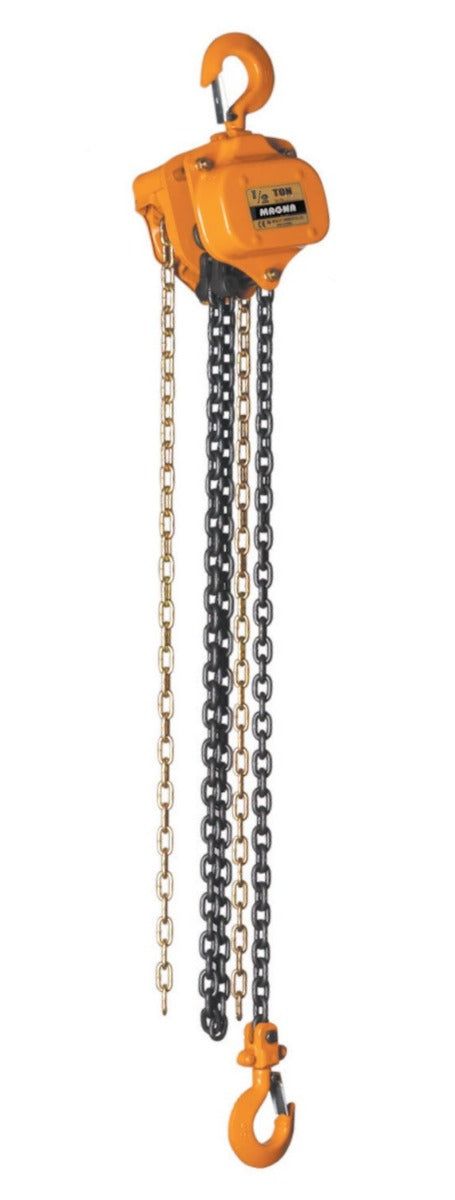

MAGNA Lifting Products 1/2 Ton Chain Hoist, 20 ft. Lift CH05020

The MAGNA CH05020 is a 1/2 Ton (1,100 lbs) manual hoist with an extended 20-foot lift, specifically designed for applications in high-bay facilities and theaters. The long chain allow easy operation from the ground even when the hoist is mounted high above, perfect for lifting light fixtures, HVAC components, or stage equipment.

This unit retains the robust features of the CH series, including a repairable steel chassis and Grade 80 alloy chain. The factory-applied low-temperature grease ensures smooth operation in unheated environments down to -49°F. Lightweight and portable, the CH05020 is a versatile tool for maintenance crews working in large commercial and industrial spaces.

Features & Benefits

• High Reach: 20-foot lift for high ceilings and deep drops.
• Compact Power: 1,100 lb capacity in a lightweight frame.
• Smooth Operation: Efficient gearing for easy lifting (53 lbs pull).
• Cold Ready: Lubricated for -45°C (-49°F) performance.
• Durable: Stamped steel housing resists impact.
• Safety Tested: 150% proof loaded to ANSI standards.

Compatible Accessories: Chain Bag, Lug Mount Attachment, Zinc Plated Load Chain, Slip Clutch, PTR050 (1/2 Ton Plain Trolley), BC100P/BC100RE (1 Ton Beam Clamps)

Specifications

• Model Number: CH05020
• Working Load Limit (WLL): 1/2 Ton (1,100 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 6.3 x 19.1 mm
• Load Chain Grade: Grade 80
• Number of Falls: 1
• Pull to Lift Full Load: 53 lbs
• Headroom (Dimension C): 12.40 in.
• Hook Throat Opening (Dimension G): 1.06 in.
• Net Weight: 37.2 lbs
