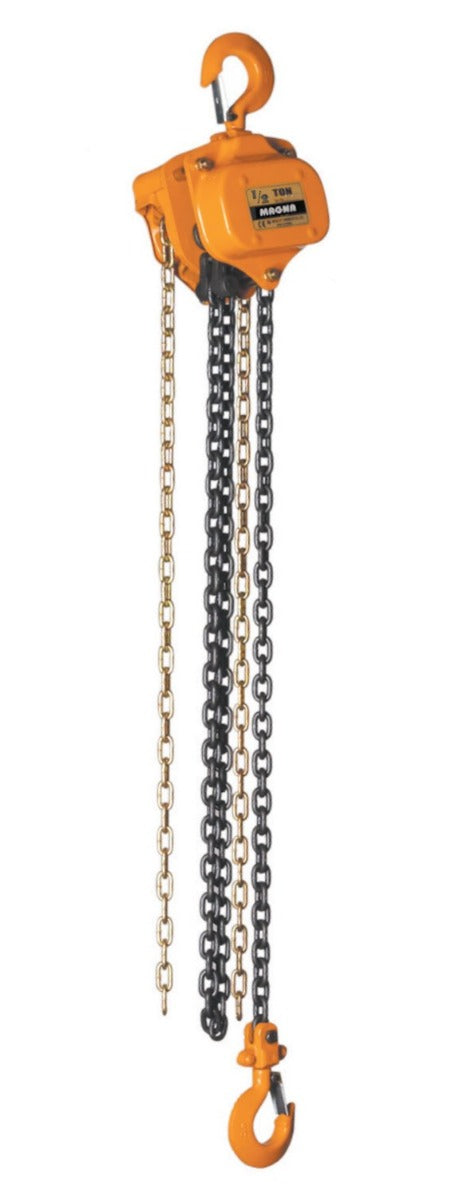

MAGNA Lifting Products 1/2 Ton Chain Hoist, 15 ft. Lift CH05015

The MAGNA CH05015 takes the compact versatility of the 1/2 Ton (1,100 lbs) hoist and extends its utility with a 15-foot lift. This extended reach makes it the ideal solution for commercial HVAC installers, warehouse maintenance, and facilities with higher ceilings where a standard 10-foot chain falls short. The extra length allows operators to control lifts from the ground even when the hoist is mounted high on a truss or beam.

Like all MAGNA CH series hoists, it features a fully repairable steel housing and Grade 80 alloy load chain. The internal mechanism is protected by low-temperature grease (-49°F), ensuring the brake and gears don't freeze up in unheated high-bay environments. The lightweight design ensures that despite the extra chain length, the unit remains portable and easy to install.

Features & Benefits

• Extended Reach: 15-foot lift accommodates high ceilings and deep pits.
• Compact Power: 1,100 lb capacity in a lightweight, durable steel frame.
• Smooth Lifts: Spur gear efficiency requires minimal hand effort (53 lbs).
• Cold Weather: Lubricated for performance down to -45°C (-49°F).
• Safety Tested: Proof loaded to 150% of rated capacity.
• Serviceable: Easy access to internal parts for inspection and repair.

Compatible Accessories: Chain Bag, Lug Mount Attachment, Zinc Plated Load Chain, Slip Clutch, PTR050 (1/2 Ton Plain Trolley), BC100P/BC100RE (1 Ton Beam Clamps)

Specifications

• Model Number: CH05015
• Working Load Limit (WLL): 1/2 Ton (1,100 lbs)
• Standard Lift: 15 ft.
• Load Chain Dimensions: 6.3 x 19.1 mm
• Load Chain Grade: Grade 80
• Number of Falls: 1
• Pull to Lift Full Load: 53 lbs
• Headroom (Dimension C): 12.40 in.
• Hook Throat Opening (Dimension G): 1.06 in.
• Net Weight: 31.1 lbs
