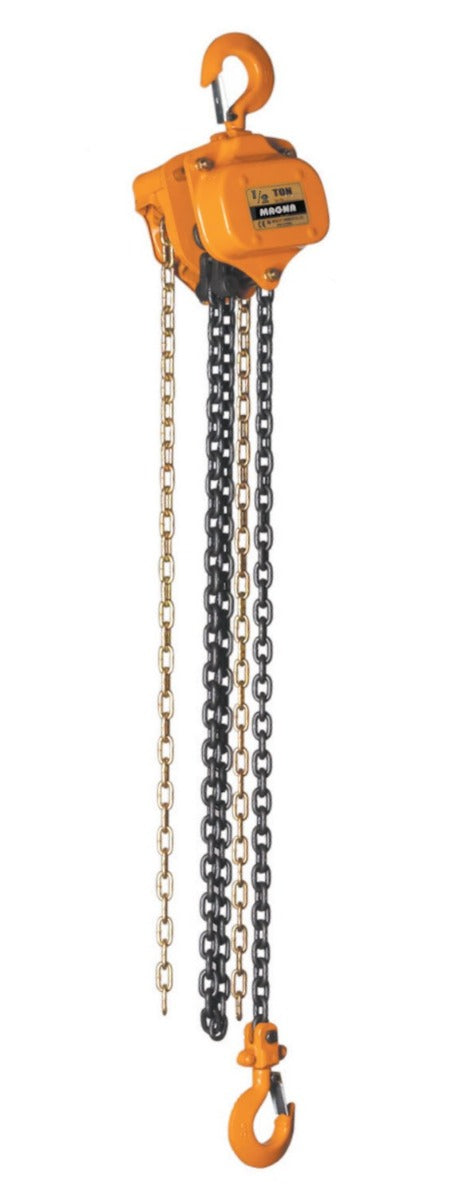

MAGNA 1/2 Ton Chain Hoist, 10 ft. Lift CH05010
The MAGNA CH05010 offers a precise 1/2 Ton (1,100 lbs) lifting capacity in an ultra-portable chassis, making it a staple tool for mechanics, maintenance technicians, and light manufacturing environments. Engineered with a standard 10-foot lift, this hoist is perfectly sized for standard ceiling heights and work cells where operators need to position heavy workpieces, engines, or equipment components with high accuracy.
This unit distinguishes itself with a fully repairable stamped steel housing that protects the internal gear train from impact and debris. Unlike disposable consumer-grade hoists, the CH05010 is built for longevity, featuring Grade 80 alloy load chain and a specialized low-temperature grease that ensures smooth operation in environments as cold as -45°C (-49°F). Each unit is load tested to 150% of its rated capacity, guaranteeing structural integrity and safety during daily lifting operations.
Features & Benefits
- Compact Durability: Lightweight stamped steel frame minimizes weight while maximizing impact resistance.
- Precision Control: High-efficiency spur gearing requires only 53 lbs of hand pull to lift full capacity.
- Extreme Climate Ready: Factory-lubricated with -45°C (-49°F) grease for reliable outdoor and cold-storage use.
- Safety Compliance: Proof tested to 150% of WLL (1,650 lbs) and meets ANSI/ASME B30.16 standards.
- Maintenance Friendly: Simple design with accessible parts allows for easy inspection and repair.
- Corrosion Resistant: Grade 80 alloy load chain features a protective finish to resist rust and wear.
Compatible Accessories: Chain Bag, Lug Mount Attachment, Zinc Plated Load Chain, Slip Clutch, PTR050 (1/2 Ton Plain Trolley), BC100P/BC100RE (1 Ton Beam Clamps)
Specifications
- Model Number: CH05010
- Working Load Limit (WLL): 1/2 Ton (1,100 lbs)
- Standard Lift: 10 ft.
- Load Chain Dimensions: 6.3 x 19.1 mm
- Load Chain Grade: Grade 80
- Number of Falls: 1
- Pull to Lift Full Load: 53 lbs
- Headroom (Dimension C): 12.40 in.
- Hook Throat Opening (Dimension G): 1.06 in.
- Net Weight: 25.0 lbs
