Bus-Bar Clamp
Bus-Bar Clamp

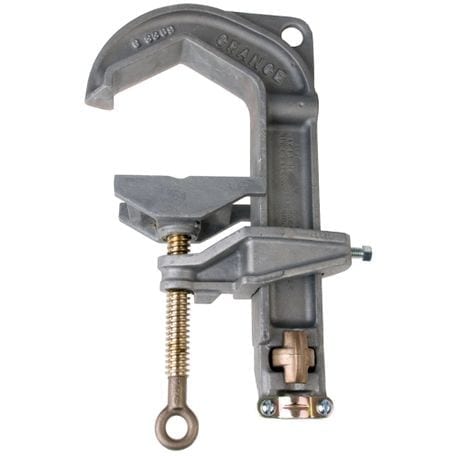

This aluminum bus-bar clamp fits on the square bus up to 4″ x 4″ and round bus up to 4-1/2″ and accepts pressure type ferrules. Fault current rating of 43,000Ah for 15 cycles and 30,000Ah for 30 cycles.
Contact Us to order or for more information. All cable is priced and sold by the foot.
Bus-Bar Clamp
- Bus-Bar Ground Clamp
- Continuous Current 400A
- Fault Current 43kA for 15 cycles or 30kA for 30 cycles
- Main Line Range Max. 4″ x 4″ square, 4.5″ O.D. Bus
- Main Line Range Min. 4/0 Str. CU (0.500″)
- Jumper Range Max. 4/0 Grd. Cable
- Jumper Range Min. #2 Grd. Cable
- ASTM Type I, Class A, Grade 5
- Jaws Smooth
- Ferrule Plain-Plug
Sales Drawing
