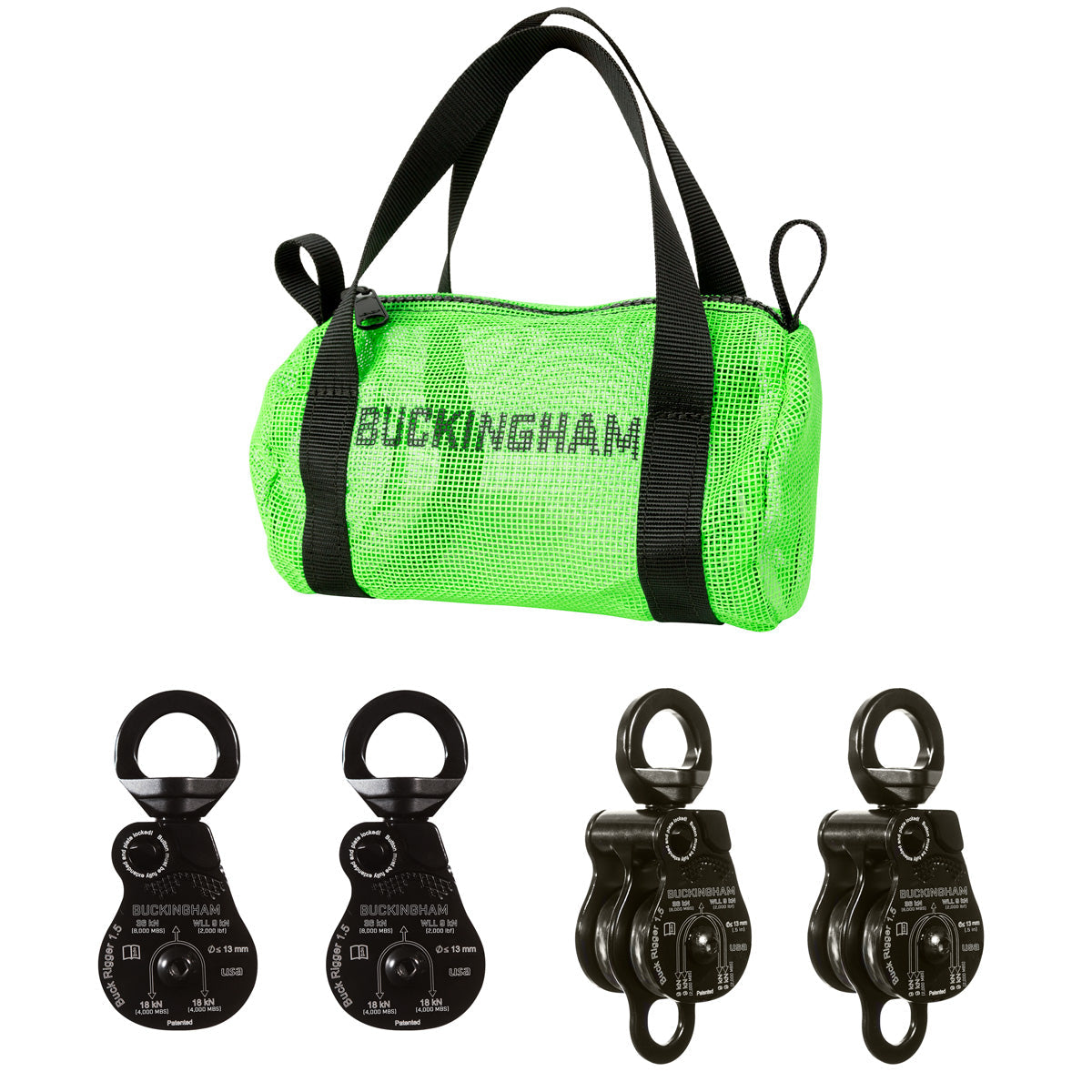

The BuckRigger™ Kit features two single sheaves and two double sheaves Buck Rigger™ all packed into a 9” mesh bag for transport and storage purposes. The advantage of the BuckRigger™ pulleys by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device.
*Usually ships in 7 to 14 days.
Both the single and double sheave feature a ½” rope capacity, a WLL of 2,000 lbf. And have an MBS of 8,000 lbf.
Kit includes:
- 2 – Single Sheave BuckRigger™
- 2 – Double Sheave BuckRigger™
- 9” BuckViz™ Mesh Equipment Bag
| KIT 97 | |
| Product Number: | 45400G10-9 |
| Product Name: | Mesh Equipment Bag |
| Color(s): | Black, Green, BuckViz Green |
| Diameter: | 5" |
| Length: | 9" |
| Weight: | 0.78 lbs. |
| Number of Pockets: | 0 |
| Outside Pockets: | 0 |
| Inside Pockets: | 0 |
| Pocket Material: | N/A |
| Material: | Mesh |
| 2 Way Snap: | No |
| Rain Flap: | No |
| Back Straps / Shoulder Straps: | No |
| Handles: | 1″ Nylon Web Handles |
| Closure Tab: | Zipper |
| Bottom Material: | Mesh |
| Made in USA?: | Yes |
| Product Number: | 5007R1 |
| Product Name: | SINGLE SHEAVE BUCKRIGGER™ |
| Weight: | 9.2 oz |
| Height: | 5.3″ (135mm) |
| Width: | 2.5″ (63mm) |
| Thickness: | 1.2″ (30mm) |
| Material: | Aluminum |
| Pulley Size: | 1.5″ (38mm) |
| Max Rope Diameter: | 1/2″ (13mm) |
| Breaking Strength: | 8000 lbf (36kN) |
| Weight Rating: | WLL – 1800 lbf (8kN) |
| Made in the USA: | Yes |
| Product Number: | 5007R2 |
| Product Name: | DOUBLE SHEAVE BUCKRIGGER™ |
| Material: | Aluminum |
| Weight: | 14.7 oz |
| Height: | 6.4″ (163mm) |
| Width: | 2.5″ (63mm) |
| Thickness: | 2.25″ (58mm) |
| Pulley Size: | 1.5″ (38mm) |
| Max Rope Diameter: | 1/2″ (13mm) |
| Breaking Strength: | 8000 lbf (36Kn) |
| Weight Rating: | WLL – 2000 lbf (8Kn) |
| Made in the USA: |
Yes |
Instructions & Warnings:
5007R1 & 5007R2 BuckRiggers™
