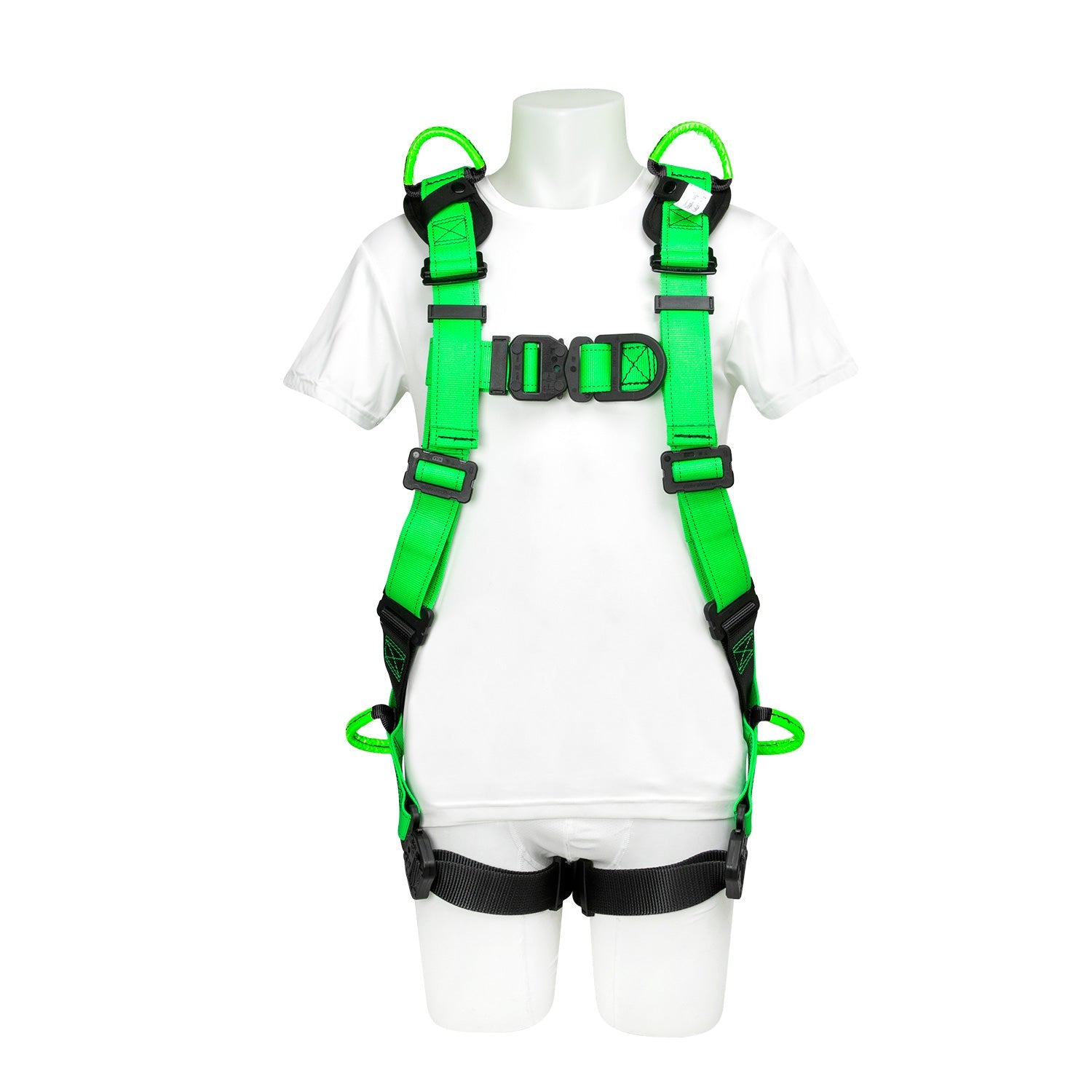

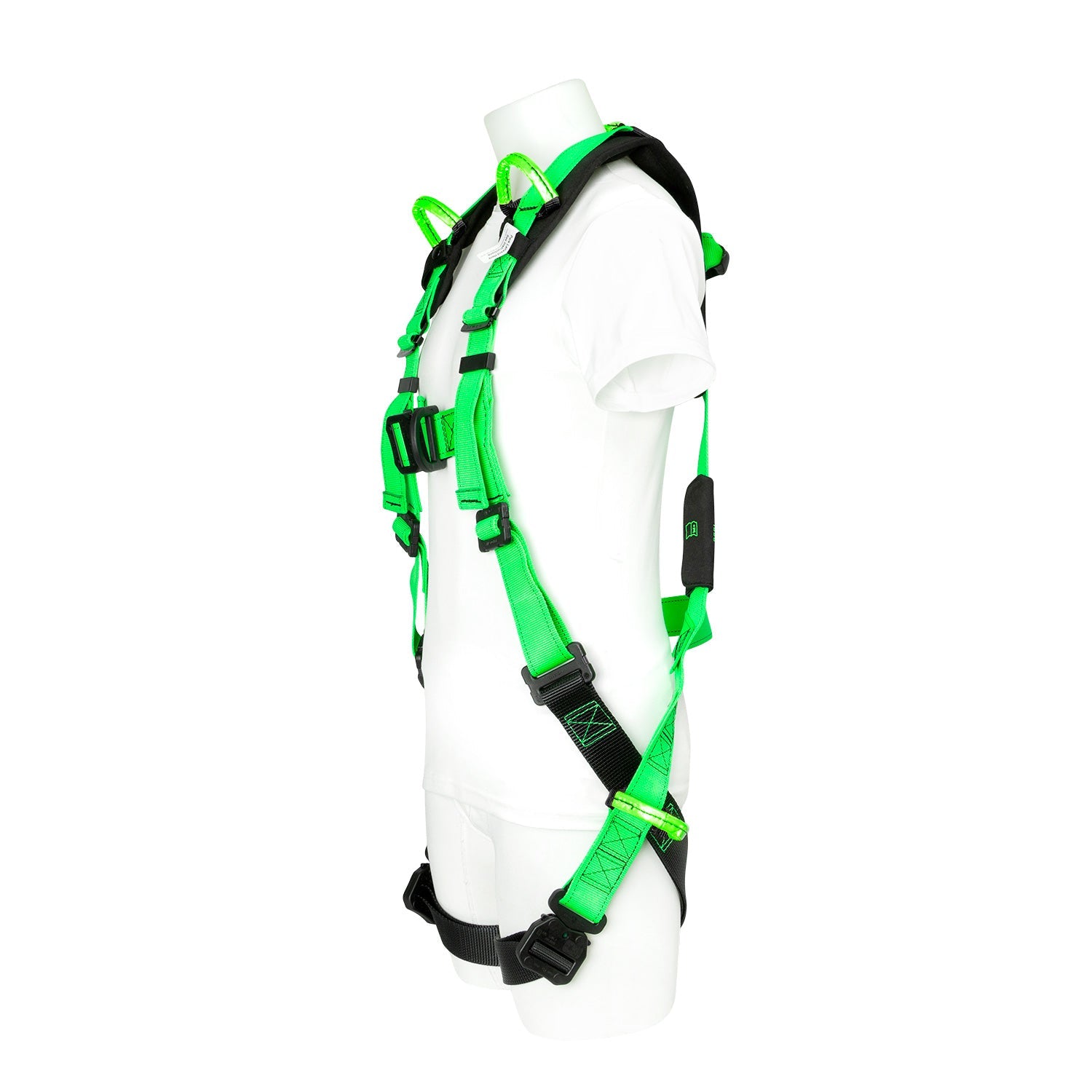

The BuckOhm™ Confined Space Harness is an H-style full body harness that features all-dielectric hardware. This harness also features 5 reflective rescue loops that can be used to perform a safer and more effective rescue. This full-body harness was developed to be used in conjunction with Buck’s Manhole rescue lifeline kits (105Q1-30 or 105Q2-30) and Confined space retrieval (5003) systems.
This harness is rated to ASTM F887 and ANSI Z359 standards.
Features:
- 9KV dielectric hardware. *Chest D-Ring rated at 3KV.
- Lightweight, comfortable, breathable and most importantly, functional back pad.
- Web loops at the dorsal location.
- Quick Connect legs straps for easy donning.
- 5 Reflective web loops.
- Back/shoulder pad provides comfort and ease when donning.
- Harness comes w/an energy-absorbing lanyard breakaway attachment (ensure ANSI compliance if removing back pad) & leg strap retainers to use if needed.
| Product Number: | 68M9EQ2 |
| Product Name: | BUCKOHM™ Confined Space Harness |
| Material: | Nylon Web |
| Chest Strap: | Dielectric Quick Connect Buckles |
| Leg Strap: | Dielectric Quick Connect Buckles |
| Thread Stitching: | Nylon |
| Torso Adjustment: | Yes |
| Dorsal Attachment: | Web Loop |
| Shoulder/Leg Pads: | Shoulder/Back pad |
| Shoulder/Leg Pad Type: | Cotton/Nylon blend with high-density Thermoformed foam |
| Harness Type: | H Style |
| Frontal Attachments: | Yes - 3KV Rated D-Ring |
| Retrieval Attachments: | Yes - Rescue Loops |
| Size: | S-X |
| Positioning D-rings: | No |
| Body Belt Attachment: | No |
| Product Type: | Fall Arrest / Fall Restraint |
| User Weight Capacity: | Rated to 420 lbs. when used with equivalently rated accessories. |
| Weight: | 4.5 lbs. |
| Standards: | ASTM F887, ANSI Z359 |
| Made in USA?: | Yes |
Instructions & Warnings:
Harness Instructions
Harness Sizing Chart
Harness Retrofit Pad Attachment Instructions & Warnings
