BUCKINGHAM TOWER VERTICAL LIFELINE KIT - 109
This Vertical Lifeline Kit contains all the components necessary to safely allow climbers vertical access to a structure while keeping them 100% fall protected. The small diameter rope allows for more compact storage and weight reduction.
This Vertical Lifeline Kit contains all the components necessary to safely allow climbers vertical access to a structure while keeping them 100% fall protected. The small diameter rope allows for more compact storage and weight reduction.
*Usually ships within 7 to 14 days.

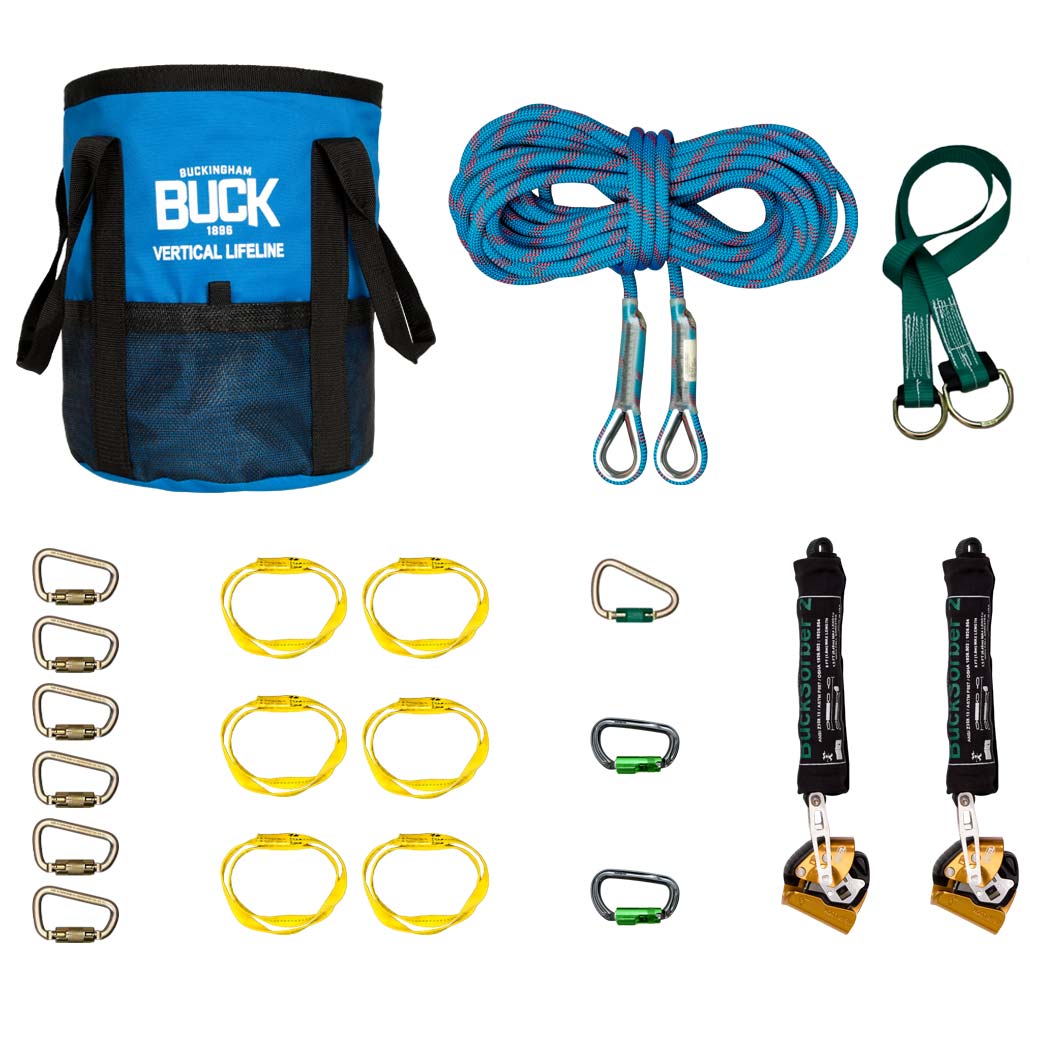

Kit includes:
300 of 7/16" abrasion resistant static rope with stitched eyes and metal thimbles on each end (other lengths available) (Model 39S2Q1-300)
2 - Mobile Fall Arrest devices (5004L4) that are easy to install. moves smoothly along the rope, and will arrest the user in the event of a fall.
6 - Redirect slings with carabiners to allow the user to position the lifeline so it conforms to the shape of the structure (Model 3905E-24)
Lifeline anchor strap (Model 3902-6) with ANSI rated carabiner (Model 50051)
Storage Bag marked "Vertical Lifeline" for easy identification (Model 4569PQ5-200)
2 - Aluminum Triple Action Carabiner – 5555S4
6 - Steel Twist Lock Carabiner - 5005T
Product Number:
4569PQ5-200
Product Name:
Rescue Kit Bag
Height:
15"
Bag Diameter:
12"
Depth:
15″
Weight:
1.2 lbs.
Rope Size:
7/16"
Number of Pockets:
5
Outside Pockets:
Yes
Inside Pockets:
No
Material:
Polyester
2 Way Snap:
No
Back Straps/Shoulder Straps:
No
Closure Tab:
Draw String
Rain Flap:
No
Made in USA?:
Yes
Product Number:
39S2Q1 - 300
Product Name
Rescue Lifeline
Rope Type:
Double Braid
Rope Size:
7/16"
Rope Length:
200' - 300'
Wear Guard:
No
End 1:
Stitched Eye w/ thimble
End 2:
Stitched Eye w/ thimble
Thimble Material:
Steel
Made in the USA:
Yes
Product Number:
5005T
Option Number:
N
Weight:
8.8 oz
Length:
4.37″ (111mm)
Width:
2.67″ (68mm)
Material:
Alloy Steel
Diameter of Eye:
No Eye
Gate Opening Capacity:
0.75″ (19mm)
Gate Strength:
3600 lbs
Breaking Strength:
9216 lbs (41KN)
Standards Met:
CSA Z259.12 / ANSI Z359.12
Other:
Double Action (2)
Product Number:
3905E - 24
Product Name:
Web Sling
Overall Length:
24"
Number of Legs:
N/A
Material Type:
Nylon Web
Adjustable:
No
Protector:
No
Protector Type:
N/A
Red Wear Center:
No
Tensile Strength
8,900 lbs.
Weight:
0.2 lbs.
Made in USA?:
Yes
Product Number:
3902-6
Product Name:
Anchor Sling
Length:
6
Width:
1.75″
Weight:
1.3 lbs.
Connector Type:
3″ Steel D Ring
Material:
Nylon Web
Made in USA?:
Yes
Part Number:
50051
Option Number:
D
Weight:
9.8 OZ
Length:
4.8″
Width:
3.2″
Material:
Steel
Diameter of Eye:
No Eye
Gate Opening Capacity:
0.95″
Gate Strength:
3596 lbs (16KN)
Breaking Strength:
9217 lbs (41KN)
Standards Met:
CSA Z259.12 / ANSI Z359.12
Other:
Triple Action (3)
Part Number:
50051
Option Number:
D
Weight:
9.8 OZ
Length:
4.8″
Width:
3.2″
Material:
Steel
Diameter of Eye:
No Eye
Gate Opening Capacity:
0.95″
Gate Strength:
3596 lbs (16KN)
Breaking Strength:
9217 lbs (41KN)
Standards Met:
CSA Z259.12 / ANSI Z359.12
Other:
Triple Action (3)
Product Number:
5004L4
Product Name:
Mobile Fall Arrestor Lock w/ BUCKSORBER2™
5004L1
ASAP Lock
Length:
5.51 in
Width:
3.74 in
Weight:
1.14 lbs
Designed For:
Vertical or Angled Rope, 10-13 mm
Material:
Aluminum, Stainless Steel & Nylon
400000X12
BUCKSORBER2™
Material:
Navajo / Kevlar
Closure Type:
Hook & Loop
User Weight Rating:
350 lbs. fully equipped
2 Person Load Rating:
620 lbs.
Max Length:
6
Max Length w/ Fall Arrester:
1.5
Standards:
Meets or exceeds all applicable requirements of ANSI Z359.13 – 6ft and 12ft free fall, ASTM F887 standards OSHA 1926.502 and 1926.954 regulations.
Made in the USA:
Yes
Available Lengths
Model 109-200 for 200 of rope
Model 109-300 for 300 of rope
109 Tower Vertical Lifeline Instructions
VIDEO
TRAINING - Vertical Lifeline Tower Kit (DOWNLOAD)
