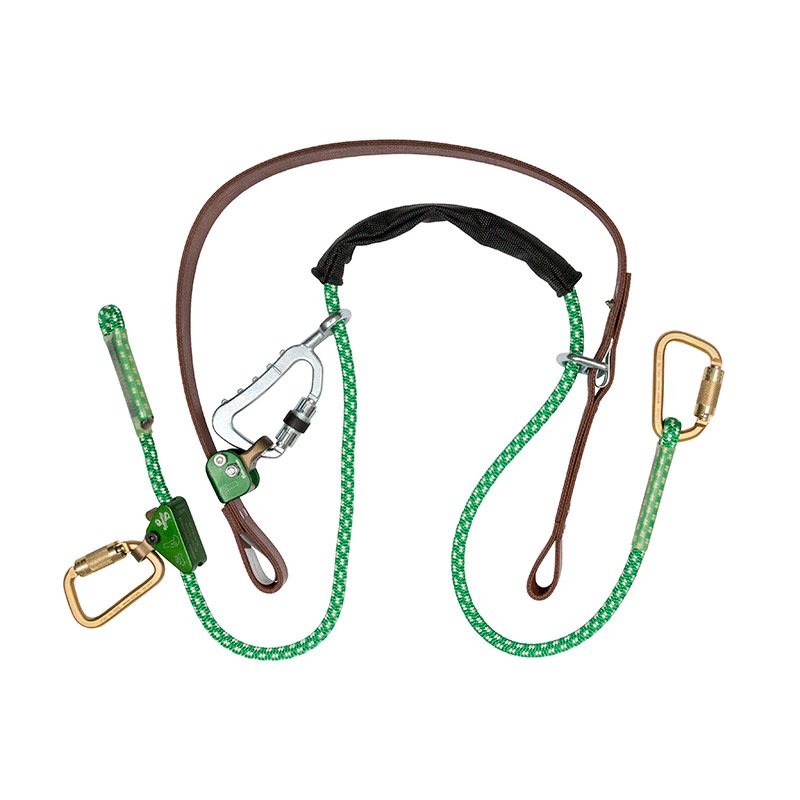

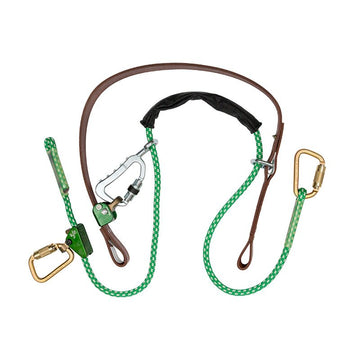

The lightweight design of the SuperSqueeze™ offers superb Wood Pole Fall Restriction and offers easy one handed outer strap adjustment by incorporating Buckingham’s WebGrab™ which allows adjustment with just a flick of the wrist. With numerous configurations the SuperSqueeze™ fits many climbing styles and needs.
FEATURES:
- Features the same easy one-handed adjustment on the inner strap with the BuckGrab™
- Can easily be configured to use a rope or web strap based on user’s preference
- Only one disconnect point when climbing over an obstruction
- Can be used by right or left-handed users
- All straps have red warning centers
- 3600 lb gate rated hardware
Its modular design makes it easy to change out worn or damaged components or straps out in the field!
SPECIFICATIONS:
Product Number: | 488RT |
Product Name: | SUPERSQUEEZE™ |
Body Belt Connector Type: | Carabiners |
Body Belt Connector Material: | Steel |
Inner Strap Length: | 78" |
Inner Strap Material: | Rope Strap |
Inner Adjustment Type: | Aluminum RopeGrab |
Outer Strap Length: | 52" |
Outer Strap Material: | Neoprene Impregnated Nylon |
Outer Strap Adjustment Type: | Aluminum WebGrab |
Buckhorn: | No |
Pole Size: | Up to a Class H6 125' Pole / 90" Circumference |
Weight: | 4.5 lbs |
User Weight Capacity: | 350 lbs |
Standards: | ASTM F887 |
Made In USA: | Yes |
REPLACEMENT PARTS AVAILABLE:
Description | Replacement Part # |
Outer Strap w/o Web Grab | 488TQ2 |
Outer Strap w/ Web Grab | 488T |
Inner Rope w/ Buck Grab | 488R2T |
Inner Rope w/o Buck Grab | 488R1T |
Buck Grab Rope Inner | 5004B |
Carabiners | 5005T |
Web Grab Only Outer Strap | 5004BW2Q2 |
Serrated Roto Snap | 1717 |
INSTRUCTIONS & WARNINGS:
Locking Snaphook Inspection Procedure
SuperSqueeze™ & EZ Squeeze™ Instructions & Warnings
Body Belts & Positioning Straps
SuperSqueeze™ Serration Grips
Positioning Device with WebGrab™
Carabiner Maintenance
SuperSqueeze™ / EZ Squeeze™ Replacement Parts
VIDEOS:
SuperSqueeze™ Overview (DOWNLOAD)
SuperSqueeze™ Inspection and Maintenance (DOWNLOAD)
TRAINING - SuperSqueeze™ Video (DOWNLOAD)
The EZ Squeeze Retrofit Kit (DOWNLOAD)
