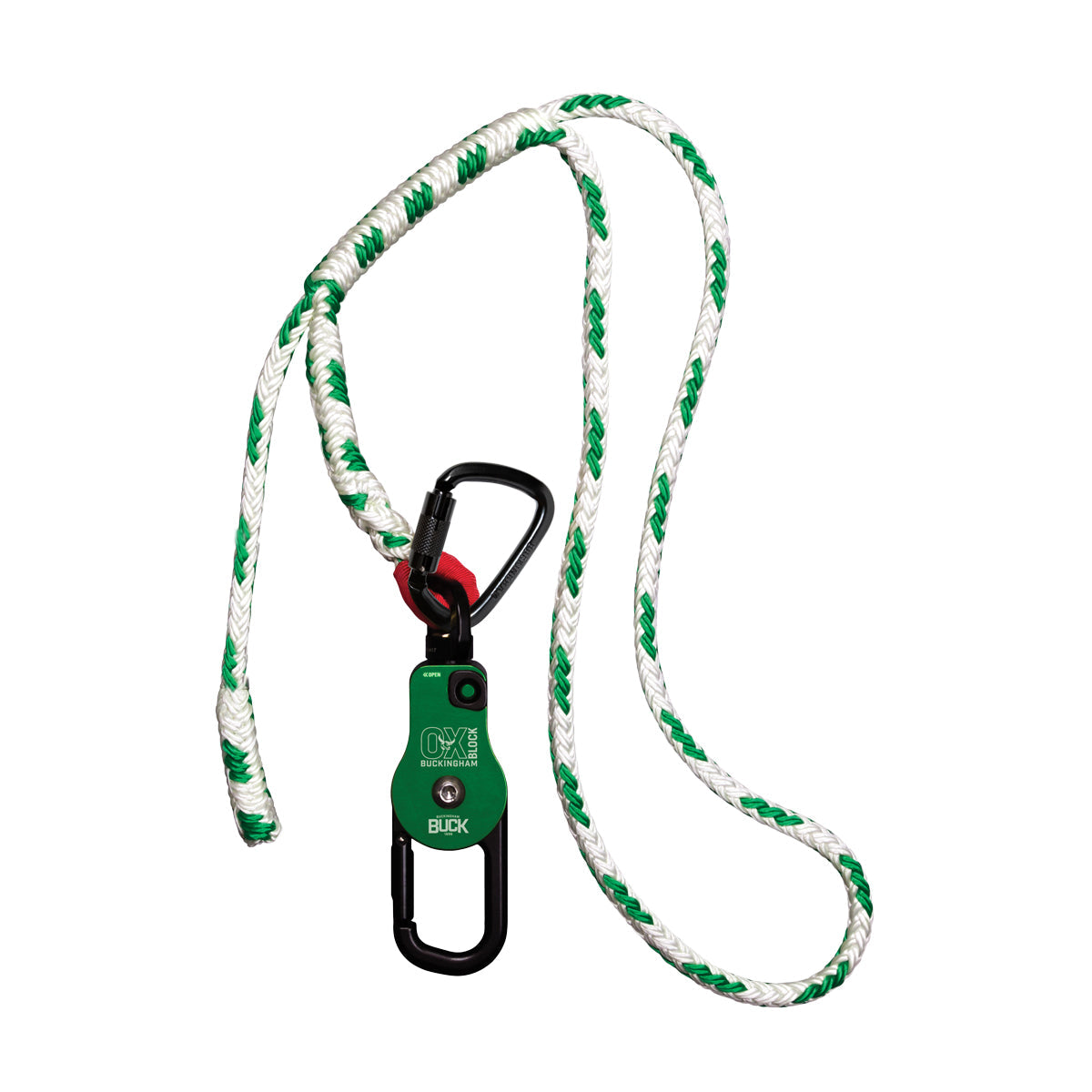

Buckingham Ox Block With Attached 4 Sling And Steel Carabiner - 50061A-4
Buckingham Ox Block With Attached 4 Sling And Steel Carabiner - 50061A-4
The OX BLOCK™ handline assembly, as a whole, can be used for human rescue. However, DO NOT USE P/N 2406 handline hook [MBS 500lbs] or handline snap [MBS 750 lbs] for human support. All components used for rescue must have a 5000 lb. rating, configured to accept human support. For rigging, ensure the weak link has a 4 to 1 safety factor.
The OX BLOCK™ is a rope snatch block with an integrated friction bar used for:
- Hurtman/self-rescue
- Lowering
- Raising
- Snubbing loads
ALSO AVAILABLE
OX BLOCK™ with 7 sling & steel carabiner, order model: 50061A-7
It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the OX BLOCK™.
- The patented OX BLOCK™ replaces standard handline blocks, parted blocks and various snatch blocks.
- Has greater WLLs than blocks of similar size.
- When configured with optional pulleys, the OX BLOCK™ can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads.
- The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device.
- ASME B30 Compliant
Product Specifications
| Product Number: | 50061A-4 |
| Product Name: | OX BLOCK™ HANDLINE ASSEMBLY |
| Material: | Polyester Rope, Aluminum OX Block (50061), Alloy Steel Snap (5005S5), Steel Hook (2406) |
| Length: | 4 Sling (Rope), 8.27" OX Block (50061), 4.68" snap (5005S5) |
| Width: | 5/8" Rope, 1.99" OX Block (50061), 3.07" snap (5005S5) |
| Weight Rating: | 5,000 lbs. |
| Weight: | 4.25 lbs. |
| Breaking Strength: | Snap (5005S5)- MBS 11,240lbs (50KN), OX Block (50061)- MBS (Sheave to eye)- 10,000lbf/MBS (Hook to eye)- 6,000lbf. WLL-50061A-4 (Sling Only)- Straight- 3,200 lbs, Choker- 2,560 lbs, Basket- 6,400lbs. SWL- 2406 (Hook) 500lbs. |
| Links to Relevant Hardware: |
50061 OX Block™ 5005S5 Carabiner |
| OX Block™ Standards: | ASME B30 Compliant |
