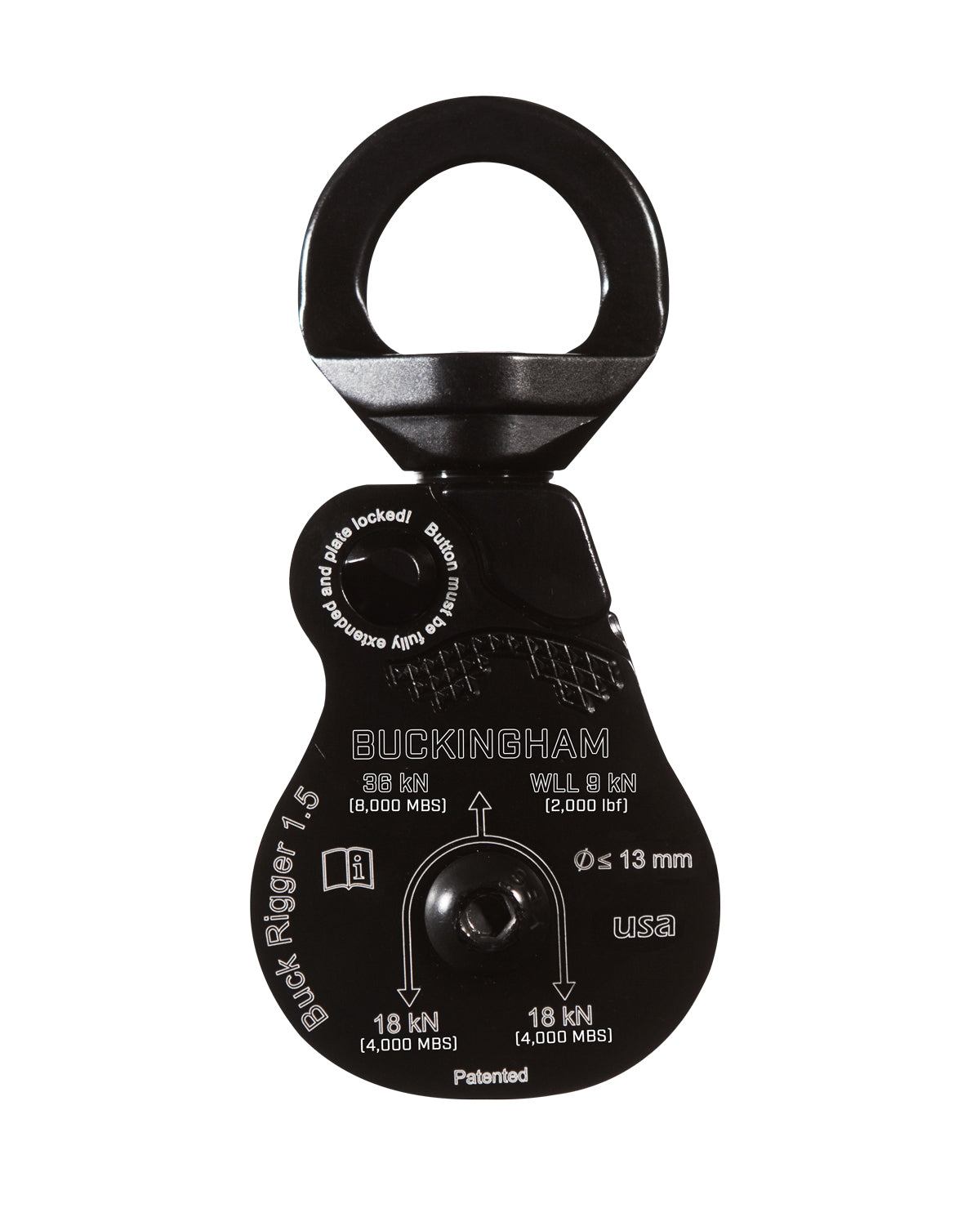

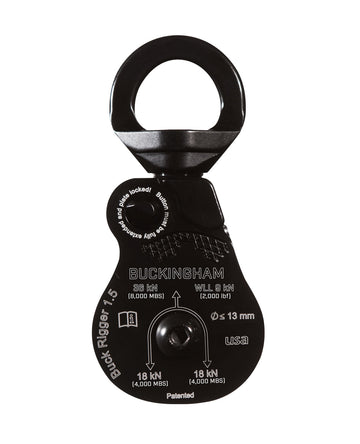

When configured with optional pulleys, the OX BLOCK™ can be used to create a 4:1, 5:1, or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads. The advantage of the BuckRigger™ pulleys by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing pulley from the connecting device. The single sheave pulley with swivel eye features a 1/2" rope capacity and a WLL of 2,000 lbf.
Product Specifications
Product Number: | 5007R1 |
Weight: | 9.2 oz |
Height: | 5.3" (135mm) |
Width: | 2.5" (63mm) |
Thickness: | 1.2" (30mm) |
Material: | Aluminum |
Pulley Size: | 1.5" (38mm) |
Max Rope Diameter: | 1/2" (13mm) |
Breaking Strength: | 8000 lbf (36kN) |
Weight Rating: | WLL - 2,000 lbf |
Product Videos
*To view other Ox Block videos, click the menu in the upper left of the video frame.
Download Links
OX Block™ Anchorage Training
Ox Block™ Lift & Lower
Compound Pulley System Training
Progress Capture
