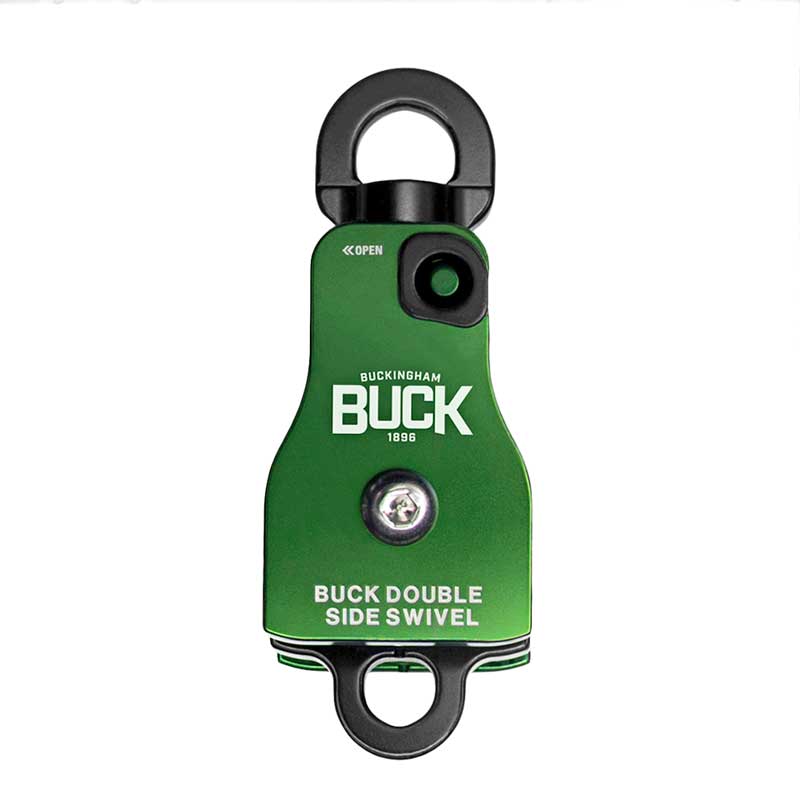

The Buck Side Swivel™ is now offered in a dual model. This heavy-duty aluminum double sheave pulley has a 5/8" diameter rope capacity with a 2500 lbf. working load limit. The "Side Swivel" plate allows rope to be installed/removed without disconnecting it from the anchor point. Specially designed side plates are ideal for use with progress capture prusiks. Swivel eye prevents twisting of ropes. Ideal for building mechanical advantage with the OX BLOCK™.
Product Specifications:
| Part Number: | 50071B2 |
| Product Name: | Dual Buck Side Swivel |
| Option Number: | N/A |
| Weight: | 2.6 lbs |
| Length: | 8" |
| Width: | 3" |
| Material: | Aluminum |
| Diameter of Eye: | Swivel Eye (upper eye) - 1" / Becket Eye (lower eye) - 0.8" |
| Breaking Strength: | MBS 10000 lbf 44(kn) |
| Diameter Rope Capacity: | 5/8" (16mm) |
| Other: | Double Pulley |
Instructions & Warnings
Buck Side Swivel Instructions & Warnings
OX BLOCK™ Instructions & Warnings
Videos
Double Side Swivel Application (Click to Download)
Ox Block™ Anchorage (Click to Download)
Ox Block™ Lift & Lower (Click to Download)
Compound Pulley System Training (Click to Download)
Ox Block™ Progress Capture (Click to Download)
