A prominent safety topic throughout the electric utility industry is bucket truck self-rescue. Whether it is an emergency situation or an issue with the bucket truck's operations, workers need to be able to perform a self-rescue safely. Buckingham’s Bucket Rescue Training Kit helps aid in the training of bucket self-rescues, ensuring all users may train safely while obtaining the knowledge needed to perform the rescue at hand.

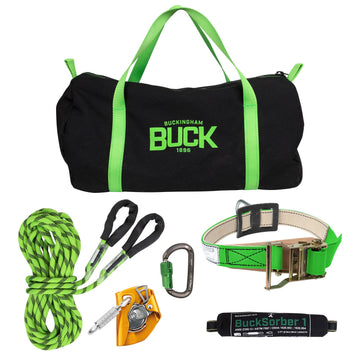

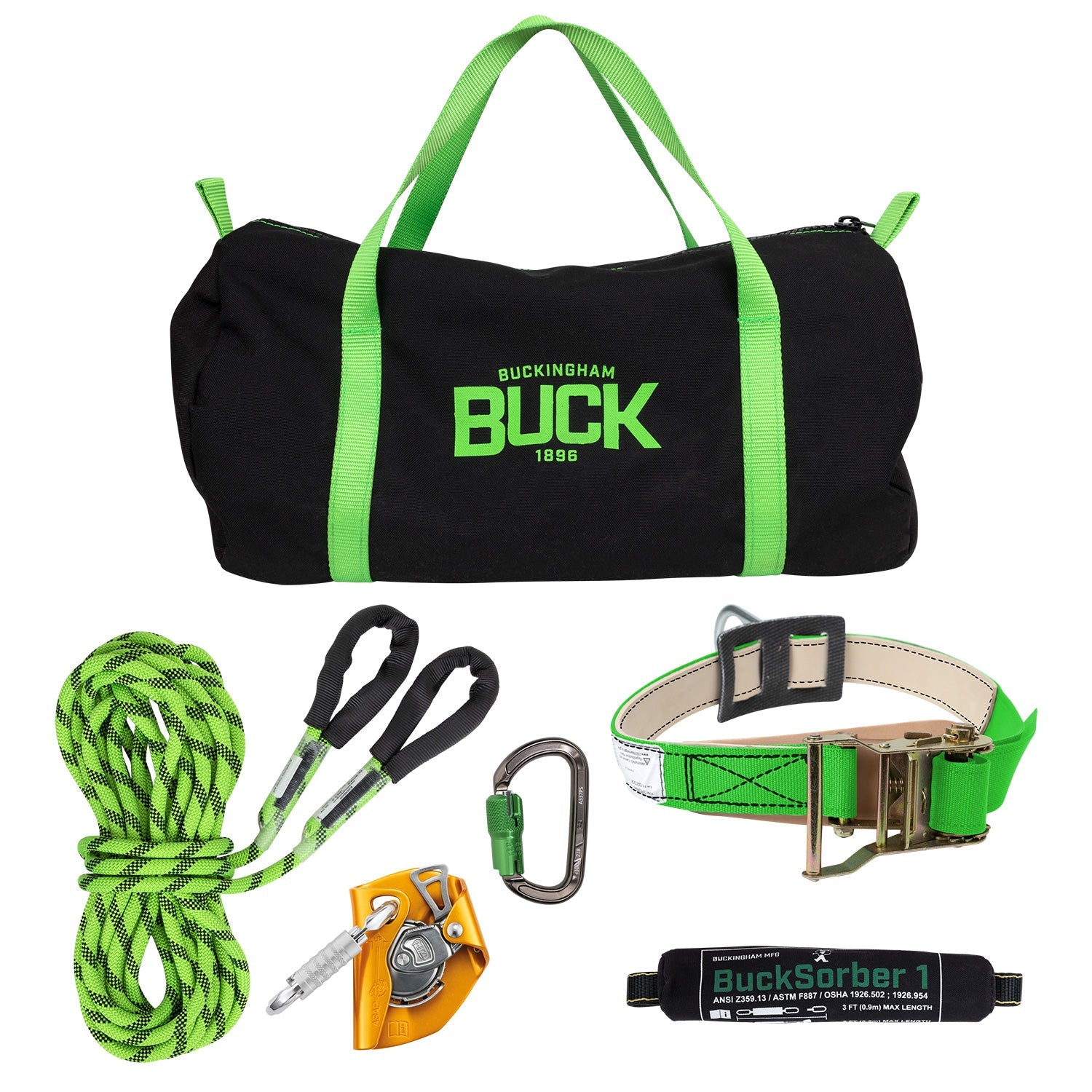

THE KIT INCLUDES:
- Ratcheting Boom Stra
- 35’ Vertical Lifeline
- Petzl ASAP® w/ OXAN Carabiner
- BuckSorber™ Energy Absorbing Pack
- 3,600 lb. Gate Rated Aluminum Carabiner
Kit contents are all packed into a 45400B4-18 equipment bag.
SPECIFICATIONS:
| Product Number: | KIT181 |
| Product Name: | Bucket Rescue Training Kit |
| Product Number: | 39Y11Q6-35 |
| Product Name: | Bucket Rescue Training Lifeline |
| Length: | 35' |
| Material: | 7/16" Kernmaster Rope |
| Rope End 1: | 6" Girth Hitch Loop w/ Wear Guard |
| Rope End 2: | 6" Girth Hitch Loop w/ Wear Guard |
| MBS: | 5,000 lbf. (22 kN) |
| Made in the USA?: | Yes |
| Product Number: | 5004L3 |
| Product Name: | Mobile Fall Arrestor |
| Product Number: | EB5004L |
| Product Name: | ASAP Mobile Fall Arrestor |
| Weight: | 0.79 lbs |
| Length: | 5.51 in |
| Width: | 3.54 in |
| Height: | 1.57 in |
| Designed For: | Vertical or Angled Rope |
| Material: | Aluminum & Steel |
| Certifications: | CE EN 353-2, CE EN 12841 type A, EAC |
| Product Name | OXAN Triact-Lock Carabiner |
| Locking System | Triact-Lock |
| Major Axis Strength | 38 kN |
| Minor Axis Strength | 16 kN |
| Open Gate Strength | 15 kN |
| Gate Opening | 20 mm |
| Weight | 230 g |
| Certifications | CE EN 362, ANSI Z359.12, NFPA 1983 Technical Use, CSA Z259.12, EAC |
| Product Number: | 400000 |
| Product Name: | BUCKSORBER1™ |
| Material: | Navajo / Kevlar |
| Closure Type: | Hook & Loop |
| User Weight Rating: | 350 lbs. fully equipped |
| Max Length: | 3' |
| Max Length w/ Fall Arrester: | 2' |
| Standards: | Meets or exceeds all applicable requirements of ANSI Z359.13 – 6ft and 12ft free fall, ASTM F887 standards OSHA 1926.502, and 1926.954 regulations. |
| Made in the USA?: | Yes |
| Product Number: | 3809R |
| Product Name: | Anchorage Ratchet Boom Strap |
| Length: | 50″ |
| Width: | 3″ |
| Weight: | 2.12 lbs. |
| Strap Material: | 1.75″ Nylon Webbing |
| Inside Strap Material: | Gum Rubber |
| Anchorage Type: | 3″ Dee Ring |
| Anchorage Material: | Steel |
| Rated To: | 5,000 lbs. |
| Max User Weight: | 350 lbs. |
| Made in the USA?: | Yes |
| Product Number: | 5555S4 |
| Product Name: | Aluminum Triple Action Carabiner |
| Weight: | 3.7 oz |
| Length: | 5 5/8″ |
| Width: | 3″ |
| Material: | Aluminum |
| Diameter of Eye: | No Eye |
| Gate Opening Capacity: | 0.63″ |
| Gate Strength: | 3596 lbs (16Kn) |
| Breaking Strength: | 6744 lbs |
| Standards Met: | ANSI Z359.12 |
| Product Number: | 45400B4-18 |
| Product Name: | Utility Equipment Bag |
| Color(s): | Black, Red, BuckViz Green |
| Diameter: | 9.5″ |
| Length: | 18" |
| Weight: | 0.78 lbs. |
| Number of Pockets: | 0 |
| Outside Pockets: | 0 |
| Inside Pockets: | 0 |
| Material: | Water Resistant Polyester |
| Rain Flap: | No |
| Back Straps / Shoulder Straps: | No |
| Handles: | 1″ Nylon Web Handles |
| Closure Tab: | Zipper |
| Bottom Material: | Water Resistant Polyester |
| Made in the USA?: | Yes |
| Kit Weight: | 7 lbs. |
INSTRUCTIONS & WARNINGS:
- Ratcheting Boom Strap Warnings
- ASAP® Instructions
- BUCKSORBER INSTRUCTIONS AND WARNINGS
- Bucket Rescue Training Kit Instructions
