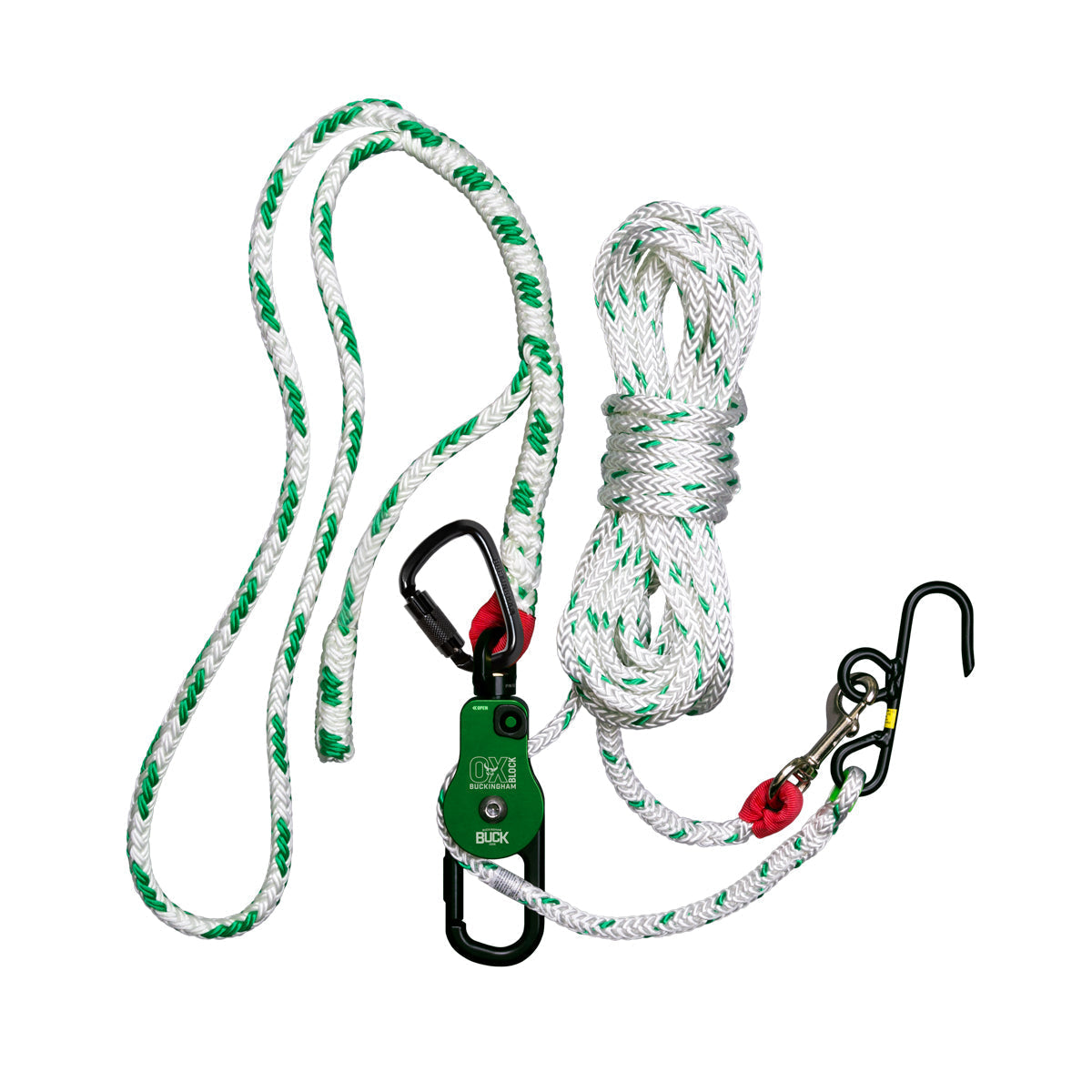

BUCK-OX BLOCK™ SLING & HANDLINE ASSEMBLY - 50061A-4/80
BUCK-OX BLOCK™ SLING & HANDLINE ASSEMBLY - 50061A-4/80
The OX BLOCK™ handline assembly, as a whole, can be used for hurtman rescue. However, DO NOT USE P/N 2406 handline hook [MBS 500lbs] or handline snap [MBS 750 lbs] for human support. All components used for rescue must have a 5000-lb. rating, configured to accept human support. For rigging, ensure the weak link has a 4 to 1 safety factor.
*Handline hook and snap are not intended for human support.
Features:
- 4′ x 5/8″ adjustable sling
- patented OX BLOCK™.
- Steel rigging carabiner
- 80′ x 1/2″ handline assembly
- The handline hook is rated to 500 lbs WLL
- The handline snap is rated to 750 lbs MBS
Product Specifications:
| Product Number: | 50061A-4/80 |
| Product Name: | OX BLOCK™ HANDLINE ASSEMBLY |
| Material: | Polyester Rope, Aluminum OX Block (50061), Steel Rigging Carabiner (5005S5), Steel Hook (2406) |
| Length: | 80 handline (Rope), 8.27" inch OX Block (50061), 4.68" in. Carabiner (5005S5) |
| Width: | 5/8" in. Rope, 1.99" inch OX Block (50061), 3.07" inch carabiner (5005S5) |
| Weight Rating: | 5000 lbs |
| Weight: | 9.5 lbs |
| Breaking Strength: | Steel rigging carabiner (5005S5)- MBS 11,240lbs (50KN), OX Block (50061)- MBS (Sheave to eye)- 10,000lbf/MBS (Hook to eye)- 6,000lbf. WLL-50061A-4 (Sling Only)- Straight- 3,200 lbs, Choker- 2,560 lbs, Basket- 6,400lbs. SWL- 2406 (Hook) 500lbs. |
| Links To Relevant Hardware: |
50061 Ox Block 5005S5 Carabiner 2406 Handline Hook |
| Made In USA: | Yes |
Instructions & Warnings:
OX BLOCK™ Instructions & Warnings
Ox Hook and Ox Horn Instructions
Ox Handline Inspection Instructions
Ox Block™ Sling Instructions & Warnings
Videos:
*To view other Ox Block videos, click the menu in the upper left of the video frame.
