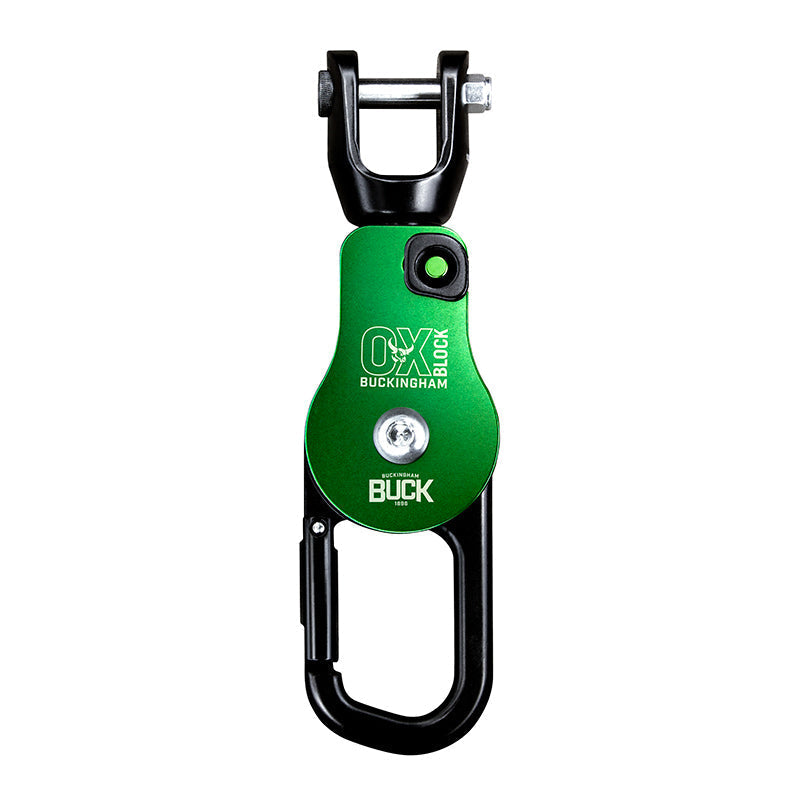

Ox Block™ With Clevis Top - 50062
Ox Block™ With Clevis Top - 50062
The OX BLOCK™ is a rope snatchblock with an integrated friction bar used for:
- Hurtman/Self-Rescue
- Lowering
- Raising
- Snubbing loads
It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the OX BLOCK™. The Clevis top allows for easy change out of accessories such as slings.
- The patented OX BLOCK™ replaces standard handline blocks, parted blocks and various snatch blocks.
- Has greater WLLs than blocks of similar size.
- When configured with optional pulleys, the OX BLOCK™ can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads.
- The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device.
- ASME B30 Compliant
Product Specifications:
| Product Number: | 50062 |
| Product Name: | OX BLOCK™ WITH CLEVIS TOP |
| Material: | Lightweight Aluminum |
| Length: | 10.5" |
| Width: | 2" |
| Gate Opening Capacity: | 1.5" |
| Weight: | 2.15 |
| Adjustable Sling: | No |
| HOOK TO EYE: | |
| MBS: | 6,000 lbs |
| WLL: | 1,500 lbf |
| SHEAVE TO EYE: | |
| MBS: | 10,000 lbs |
| WLL: | 2,500 lbf |
| OX Block™ Standards: | ASME B30 Compliant |
| Made In USA?: | Yes |
Videos:
Instructions & Warnings:
OX BLOCK™ Instructions & Warnings
Ox Block™ Overview
Ox Block™ Training
Ox Block™ Pole Top Rescue Training
Ox Block™ Anchorage Training
Ox Block™ Lift & Lower Training
Tower Rescue Training
Ox Block™ Demonstration at NLC
Pole Top Rescue with Crossarm
Pole Top Rescue with Bare Pole
