BUCK HOOK CLIMBING KIT - KIT9-18
BUCK HOOK CLIMBING KIT - KIT9-18
The BuckHook™ system is ideal for users in the Tower and Substation field, this system uses a shepherd’s hook attached to a fiberglass pole to fit over angle irons. Users will attach a lifeline with a rope grab to the head of the BuckHook™ and then attach a rope grab to oneself to give the user fall protection.
*Usually ships within 7 to 14 days

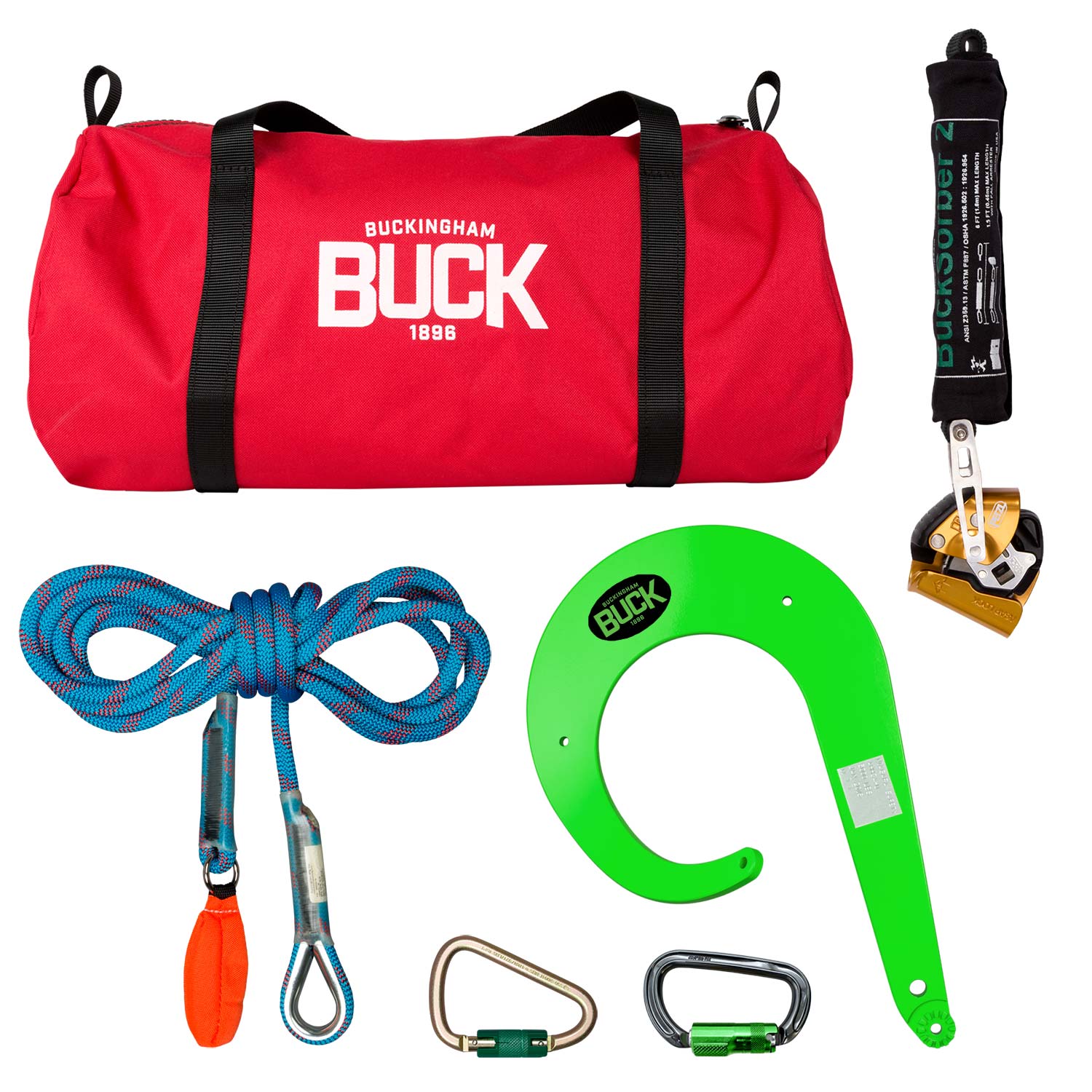

The BuckHook™ KIT includes all the components necessary for a “First man up” to have all the safety and fall protection needed to make a safe ascent. The Kit Includes:
- BuckHook™ (50371U)
- Offers fall protection during ascent and descent.
- LifeLine (39S2Q2)
- A 16ft. Lifeline- 7/16” - 1/2” Semi Static Kernmantle Rope.
- Stitched eye with steel thimble at one end.
- Tight eye with a weighted bag on the other end.
- Mobile Fall Arrestor (5004L3)
- Fits 1/2” & 7/16” Kernmantle rope.
- Made of Light aluminum alloy.
- Rolling Cam for better braking.
- The device moves freely during ascent and descent but locks up in the event of a fall.
- Comes with Steel ANSI rated triple action carabiner.
- Kit Carry Bag (45400R2-18)

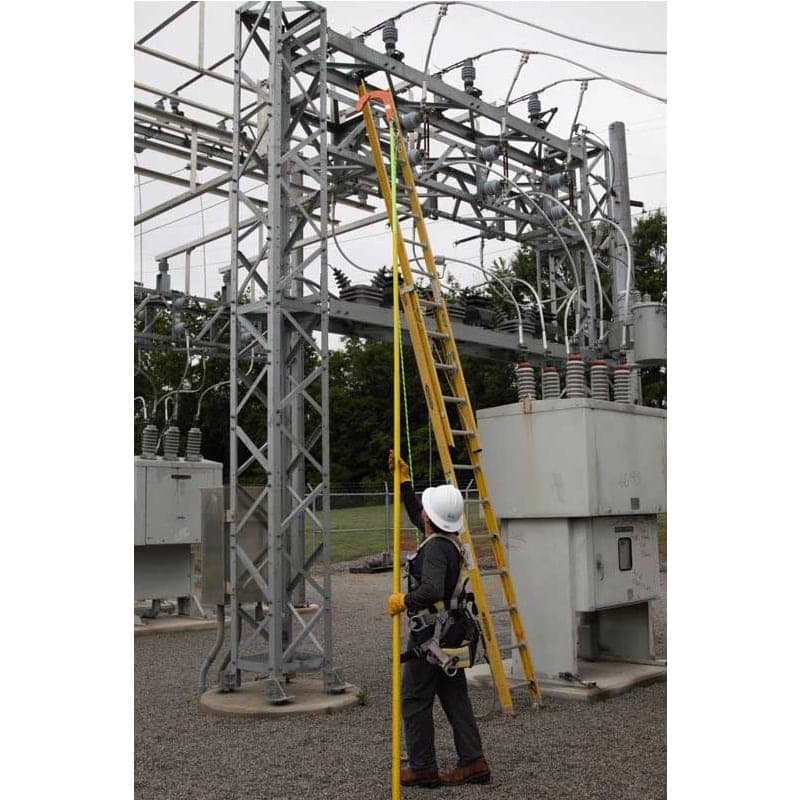

Easy Steps for using the BuckHook™ system:
- Attach a short lifeline and mobile fall arrestor to the sternal attachment on the harness. For connecting lanyards longer than 12" a shock pack should be attached to the dorsal attachment.
- Using the extension pole with BuckHook™ and 7/16" or ½" non-stretch rope attached, lift and secure hook onto lattice so that the end of the pole is below foot level.
- Once in place, climb up near BuckHook™.
- Secure secondary positioning lanyard around the tower leg. Once secure, move BuckHook™ to the next highest point making sure the end of the pole is below the users feet.
- Once at the worksite user should secure an anchor sling to a suitable anchorage point. The primary vertical lifeline can then be attached to the anchor sling.
- Once the lifeline is installed, other climbers can connect their harness to a mobile fall arrester and ascend and descend the lifeline.
*Order Model 5004L1 (ASAP LOCK) for another mobile fall arrest option with your Lifeline included with the Kit. The ASAP Lock was designed to facilitate manipulations during ascents.
| Product Name: | Utility Equipment Bag |
| Color: | Red |
| Diameter: | 9.5″ / (5″ for 9″ Length) |
| Length: | 18" |
| Weight: | 0.78 lbs. |
| Number of Pockets: | 0 |
| Outside Pockets: | 0 |
| Inside Pockets: | 0 |
| Pocket Material: | N/A |
| Material: | Water Resistant Polyester |
| 2 Way Snap: | No |
| Rain Flap: | No |
| Back Straps / Shoulder Straps: | No |
| Handles: | 1″ Nylon Web Handles |
| Closure Tab: | Zipper |
| Bottom Material: | Water Resistant Polyester |
| Made in USA?: | Yes |
| Product Number: | 39S2Q2-16 |
| Product Name: | Lifeline |
| Overall Length: | 16′ |
| Number of Legs: | 0 |
| Material Type: | Rope |
| Material: | 7/16″ – 1/2″ Semi Static Kernmantle |
| Adjustable: | No |
| Protector: | No |
| Protector Type: | N/A |
| Red Wear Center: | Yes |
| Ring Material: | N/A |
| Number of Eyes: | 2 (1 eye, 1 stitched with thimble) |
| Throwbag: | Yes |
| Weight: | 2.5 lbs |
| Standards: | OSHA 1926.502 |
| Made in USA?: | Yes |
| Product Number: | 5005 |
| Product Name: | Auto Lock Steel Carabiner with 3600 l |
| Overall Length: | 24″ |
| Number of Legs: | N/A |
| Material Type: | Nylon Web |
| Adjustable: | No |
| Protector: | No |
| Protector Type: | N/A |
| Red Wear Center: | No |
| Ring Material: | N/A |
| Weight: | 0.2 lbs. |
| Made in USA?: | Yes |
| Product Number: | 5555S4 |
| Weight: | 3.7 oz |
| Length: | 5 5/8″ |
| Width: | 3″ |
| Material: | Aluminum |
| Diameter of Eye: | No Eye |
| Gate Opening Capacity: | 0.63″ |
| Gate Strength: | 3596 lbs (16Kn) |
| Breaking Strength: | 6744 lbs |
| Standards Met: | ANSI Z359.12 |
| Product Number: | 400000X12 |
| Product Name: | BUCKSORBER2™ |
| Material: | Navajo / Kevlar |
| Closure Type: | Hook & Loop |
| User Weight Rating: | 350 lbs. fully equipped |
| 2 Person Load Rating: | 620 lbs. |
| Max Length: | 6 |
| Max Length w/ Fall Arrester: | 1.5 |
| Standards: | Meets or exceeds all applicable requirements of ANSI Z359.13 – 6ft and 12ft free fall, ASTM F887 standards OSHA 1926.502 and 1926.954 regulations. |
| Made in the USA: | Yes |
| Product Number: | 5004L1 |
| Product Name: | ASAP Lock |
| Length: | 5.51 in |
| Width: | 3.74 in |
| Weight: | 1.14 lbs |
| Designed For: | Vertical or Angled Rope, 10-13 mm |
| Material: | Aluminum, Stainless Steel & Nylon |
| Product Number: | 5004L4 |
| Product Name: | Mobile Fall Arrestor Lock w/ BUCKSORBER2™ |
| Product Number: | 50371U |
| Product Name: | BuckHook |
| Hook Opening: | 7" |
| Material: | Steel |
| Tensile Strength: | 5,000 lbf. |
| Length: | 19" |
| Width: | 3.5" |
| Weight: | 3.4 lbs |
| Connector Type: | Universal |
| Made In USA?: | Yes |
