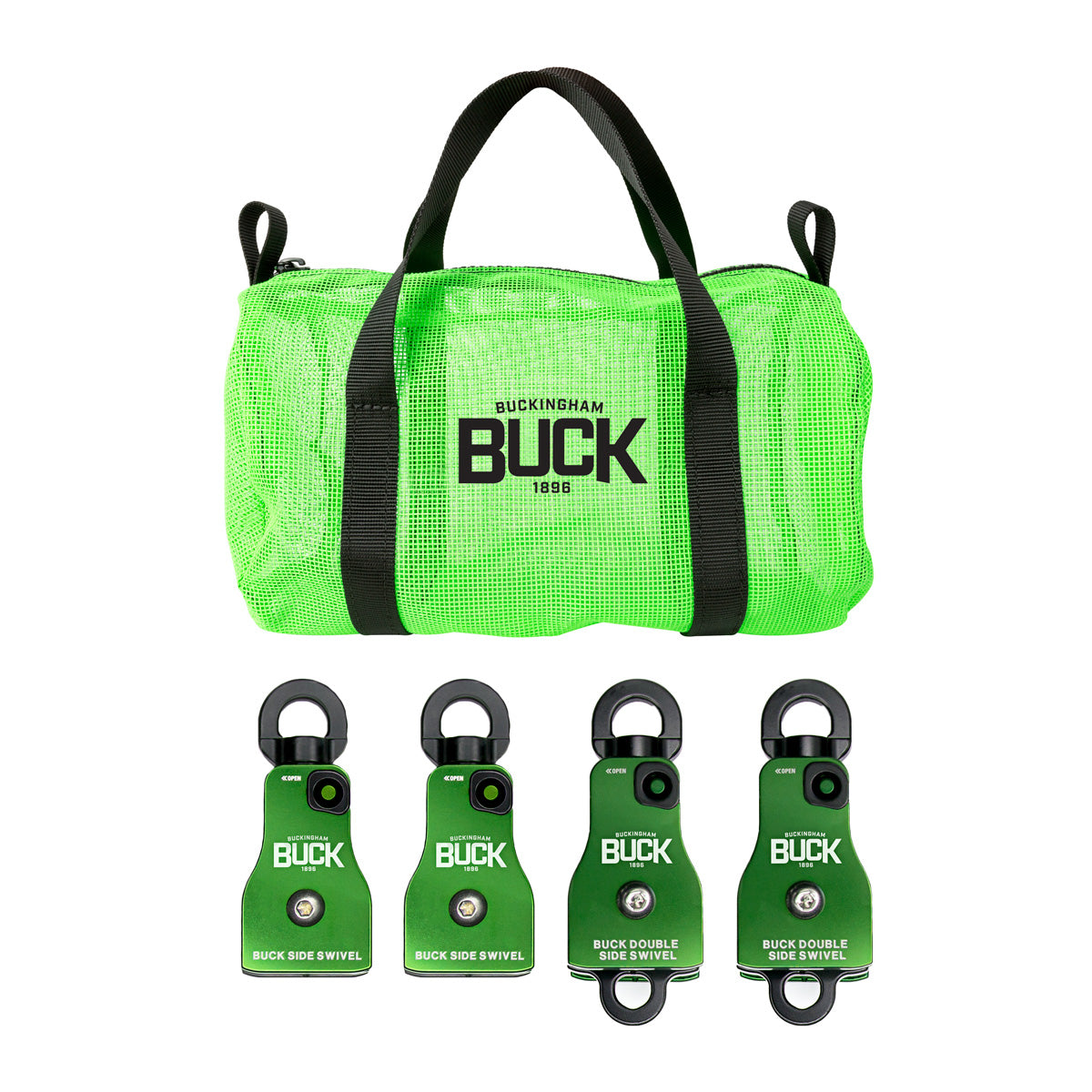

The Buck Auxiliary Pulley Kit features heavy duty aluminum double & single sheave side swivels with 5/8″ diameter rope capacity with a 2500 lbf working load limit. The “Side Swivel” plate allows rope to be installed/removed without disconnecting it from the anchor point. Specially designed side plates are ideal for use with progress capture prusiks. Swivel eye prevents twisting of ropes. Ideal for building mechanical advantage with the OX BLOCK™.
KIT INCLUDES:
- 2 SINGLE SHEAVE BUCK SIDE SWIVELS™.
- 2 DUAL SHEAVE BUCK SIDE SWIVELS™.
- 12” BUCKVIZ™ MESH EQUIPMENT BAG.
SPECIFICATIONS:
| Buck Auxiliary Pulley Kit- KIT86 | |
| Part Number: | 50071B1 |
| Weight: | 1.6 lb |
| Length: | 7″ (178mm) |
| Width: | 3″ (76mm) |
| Material: | Aluminum |
| Diameter of Eye: | Swivel Eye – 1″ |
| Breaking Strength: | MBS – 10000 lbf (44KN) / WLL – 2500 lbf (11KN) |
| Other: | Max Rope Diameter – 5/8″ (16mm) / 5/8″ x 2 1/8″ Sealed Ball Bearing Pulley Thickness – 1.813″ (46mm) |
| Part Number: | 50071B2 |
| Product Name: | Dual Buck Side Swivel |
| Option Number: | N/A |
| Weight: | 2.6 lbs |
| Length: | 8″ |
| Width: | 3″ |
| Material: | Aluminum |
| Diameter of Eye: | Swivel Eye (upper eye) – 1″ / Becket Eye (lower eye) – 0.8″ |
| Breaking Strength: | MBS 10000 lbf 44(kn) |
| Diameter Rope Capacity: | 5/8″ (16mm) |
| Other: | Double Pulley |
| Part Number: | 45400 |
| Product Name: | Mesh Equipment Bag |
| Color(s): | Black, Green, Red, BuckViz Green |
| Diameter: | 9.5″ |
| Length: | 12″ |
| Weight: | 0.78 lbs. |
| Material: | Mesh |
| Handles: | 1″ Nylon Web Handles |
| Closure Tab: | Zipper |
| Bottom Material: | Mesh |
| Made in USA?: | Yes |
INSTRUCTIONS & WARNINGS:
Buck Side Swivel™ Instructions & Warnings
OX BLOCK™ Instructions & Warnings
VIDEOS:
Double Side Swivel Application (Click to Download)
Ox Block™ Anchorage (Click to Download)
Ox Block™ Lift & Lower (Click to Download)
Compound Pulley System Training (Click to Download)
Ox Block™ Progress Capture (Click to Download)
