BLUEMAX USA DIGITAL DYNO

Description:

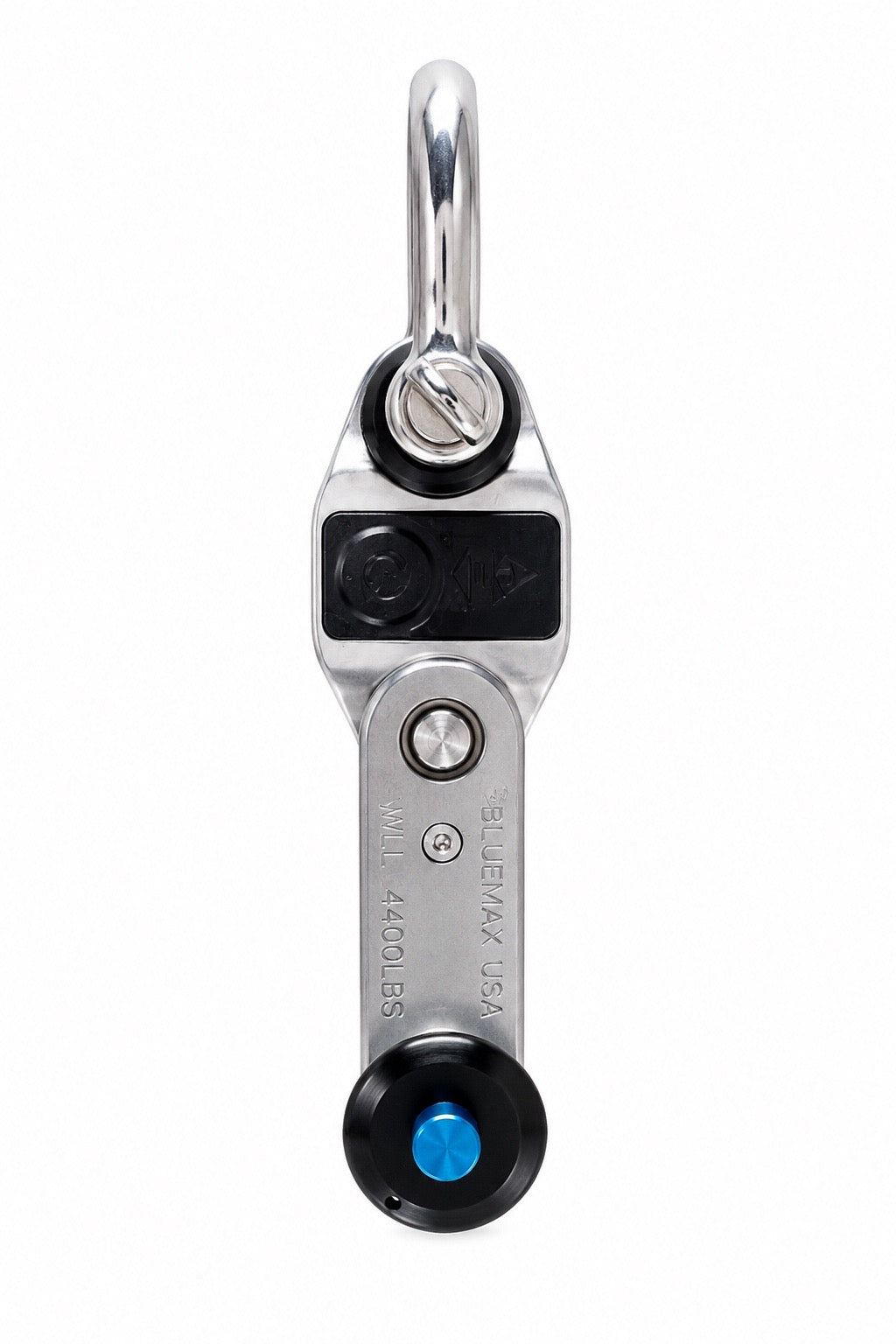

The Bluemax USA Dynamometer is a field‑ready tension tool built for linemen who need precise, defensible data on every pull. Engineered from Titanium Ti‑6Al‑4V and fully waterproof, it reads in 1 lb increments, weighs under 2 oz, and delivers 2000 hours of battery life with sub‑1‑hour recharge. Bluetooth connectivity provides live tension display, target tension input, automatic logging, and exportable records—giving crews verifiable tension, sag, lifting load, and anchor force measurements without fragile screens, proprietary cables, recurring calibration fees, or cloud dependency unless requested. Designed for real‑world utility work, Bluemax replaces assumptions with measured, logged, defensible numbers for line sagging, lifting and rigging, anchor testing, and guying operations.

SEE PDF: SPECIFICATIONS HERE

Features:

• Titanium Ti‑6Al‑4V Body — Ultra‑strong, lightweight primary structure built for utility, marine, and outdoor environments.

• High‑Accuracy Digital Load Measurement — Reads in 1 lb increments with verified precision across all ranges.

• Rated Capacity Options — Available in 4,400 lb, 11,000 lb, and 22,000 lb WLL models (Micro, Milli, Centi).

• 4:1 Safety Factor — Minimum design factor meeting utility and ASME compliance requirements.

• IP67 Waterproof Housing — Dust‑tight and protected against full water immersion with UV‑stable Acetal electronics housing.

• Bluetooth® Low Energy Connectivity — Works with Bluemax & EZ‑SAG App (iOS) for live tension display, logging, and exportable records.

• Long‑Life Power System — Lithium polymer battery delivering 2,000+ hrs @ 0.1 Hz, 20,000+ hrs @ 1 Hz, and 200,000+ hrs @ 10 Hz.

• 250 ft Wireless Range — Reliable line‑of‑sight BLE communication for field crews.

• Annual Calibration Included (10 Years) — Long‑term service coverage with a 10‑year comprehensive warranty, including battery.

• Compact & Field‑Deployable — Lightweight form factor designed for continuous outdoor utility use.
