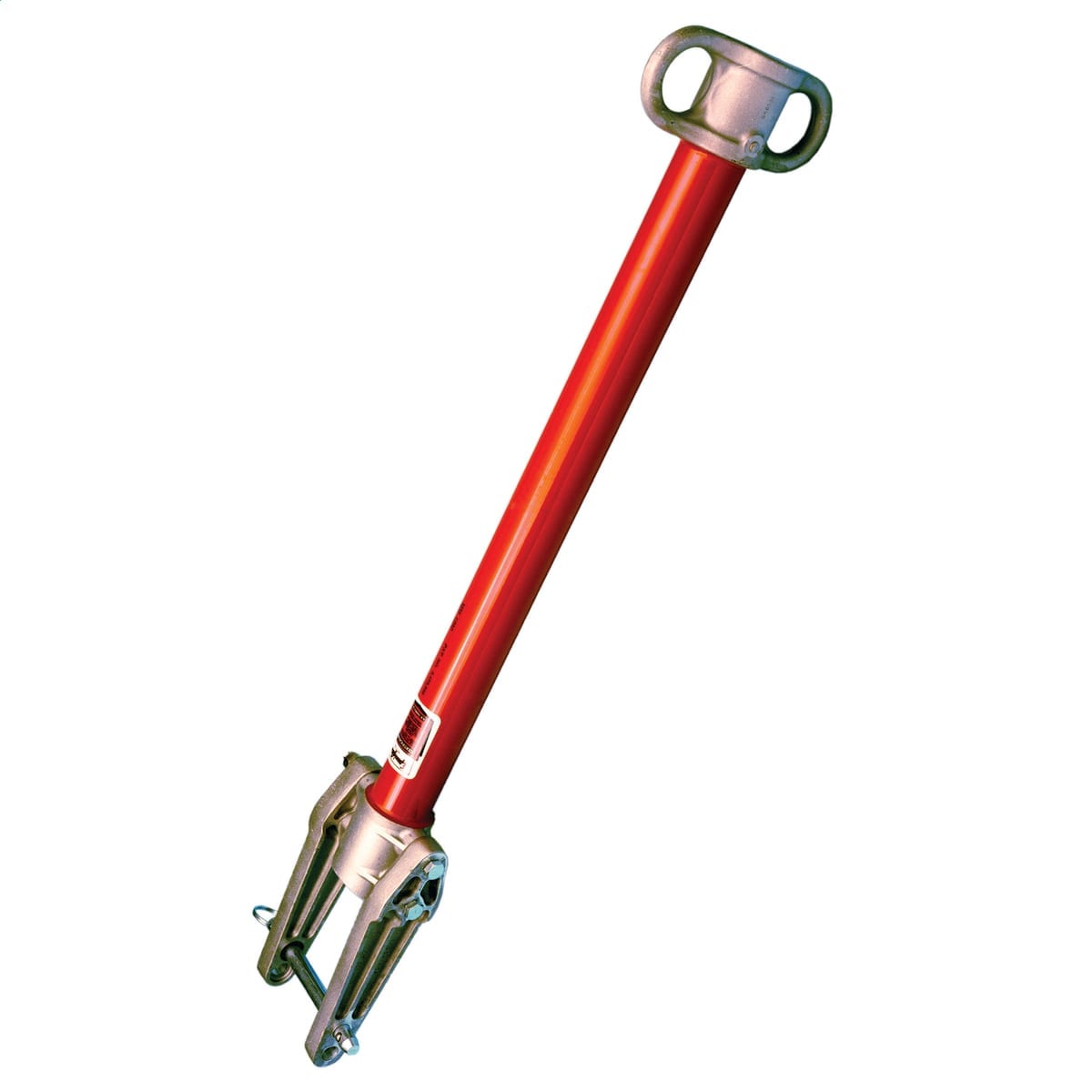

AB Chance Crossarm Gin
AB Chance Crossarm Gin
Yoke casting fits over distribution crossarms, so this AB Chance Crossarm Gin can be used with rope blocks or handline to lift conductors from their insulators. A removable cadmium-plated steel pin provides adjustment for crossarm from 3.5″ x 4.5″ up to 4.75″ x 5.75″. At a 30˚ maximum angle from vertical, 44″ gin has rated working load including pull force of 750 lb.- 56″ gin, 500 lb. Gins are not intended for applications involving side pull on either hoist line or load line. Lines to be within 5˚ of vertical.
Contact us if you have any questions.
AB Chance Resources/Downloads
SA_400-1938
