AB Chance Ground Clamp – C-Type I-A- 2- 0.814″ Jaw Opening, Threaded Terminal
Regular price
$93.31
Sale price
$93.31
Regular price
Unit price
AB Chance Ground Clamp – C-Type I-A- 2- 0.814″ Jaw Opening, Threaded Terminal
Regular price
$93.31
Sale price
$93.31
Regular price
Unit price
Product description
Shipping & Return
Product reviews

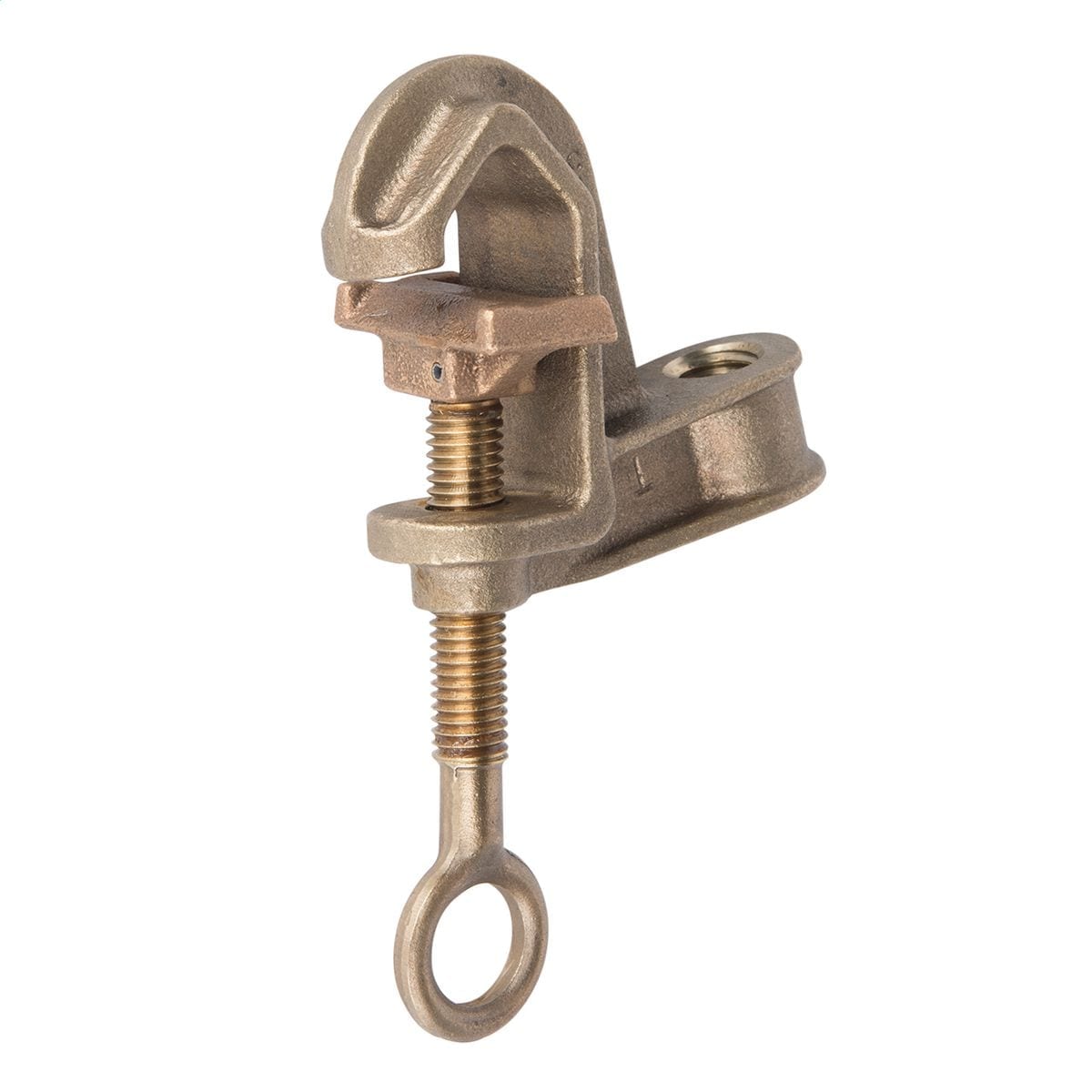

Chance C-Type Ground Clamp
- Continuous Current 250A
- Fault Current 21kA for 15 cycles or 15kA for 30 cycles
- Main Line Range Max. 477kcmil ACSR (0.814″)
- Main Line Range Min. #6 Sol. CU (0.162″)
- Jumper Range Max. 1/0 Grd. Cable
- Jumper Range Min. #2 Grd. Cable
- ASTM Type I, Class A, Grade 2
- Jaws Smooth
- Ferrule Threaded
Contact us if you have any questions.
AB Chance Ground Clamp – C-Type I-A- 2- 0.814″ Jaw Opening, Threaded Terminal
General
| Bolt Installation Torque (Recommended) | 17 ft-lbs |
| Handle Type | Eyescrew |
| Jaw Type | Smooth Jaws |
| Material | Bronze |
| Terminal Connection Type | 5/8″-11 Thread |
| Thread Size | 5/8-11 UNC |
| UPC | 096359061021 |
Dimensions
| Jaw Opening Size – Maximum | .814 in |
| Jaw Opening Size – Minimum | .162 in |
| Weight | 1.284 lb |
Electrical Ratings
| Current Rating | 250 A |
| Fault Current – 15 Cycles | 21000 A |
| Fault Current – 30 Cycles | 15000 A |
| Grounding Wire Capacity Maximum | 1/0 Cable w/ Threaded Terminal |
| Grounding Wire Capacity Minimum | #2 Cable w/ Threaded Terminal |
Certifications and Compliance
| Fault Current – ASTM Grade | ASTM Grade 2 |
Catalog
