Description:

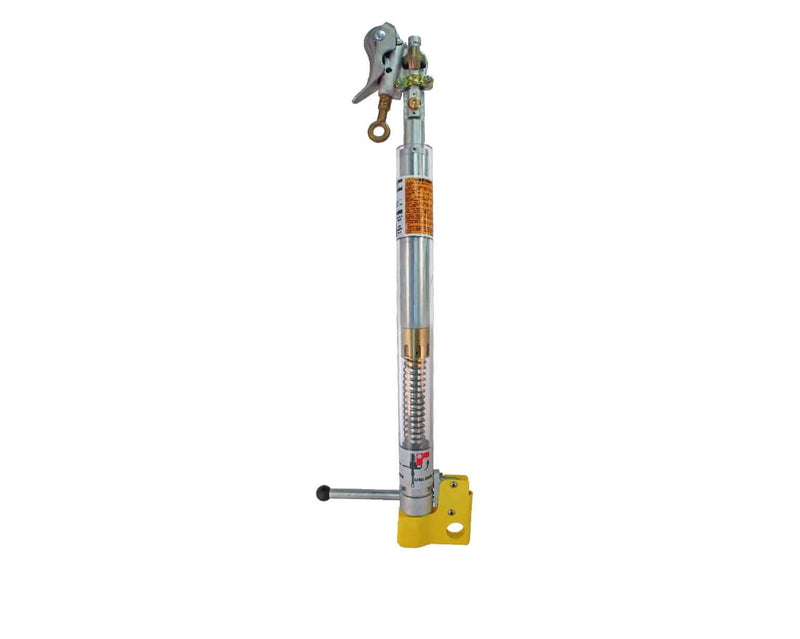

The BREAK-SAFE® is a jumper clamp that functions like a portable switch. It is designed to operate on overhead distribution lines in conjunction with a mechanical jumper. In order to keep personnel at a safe distance, the BREAK-SAFE® is operated with an insulated fiberglass hot stick(sold separately) for load break and load pick-up functions. The Yellow Safety Lock is also operated by a hot stick and helps prevent the tool from an unintended load break or pickup operation.
The BREAK-SAFE® has three operating functions:
- LOAD BREAK
- LOAD PICKUP
- CONTINUOUS CURRENT DUTY
Specifications:
- MODEL: USBS-15-2-PS-S
- OPERATIONAL VOLTAGE: 15 kV
- RATING: 300 AMPS
- WEIGHT: 6 lb 7 oz
- CLOSED LENGTH: 28"
- OPEN LENGTH: 32"
- HEAD: DUCKBILL

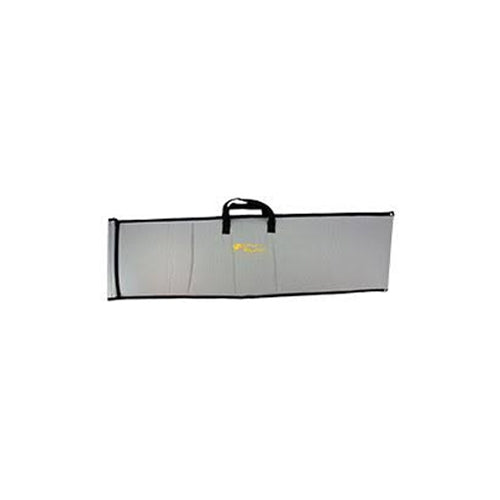

- CASE: SOFT
- Made in the USA
