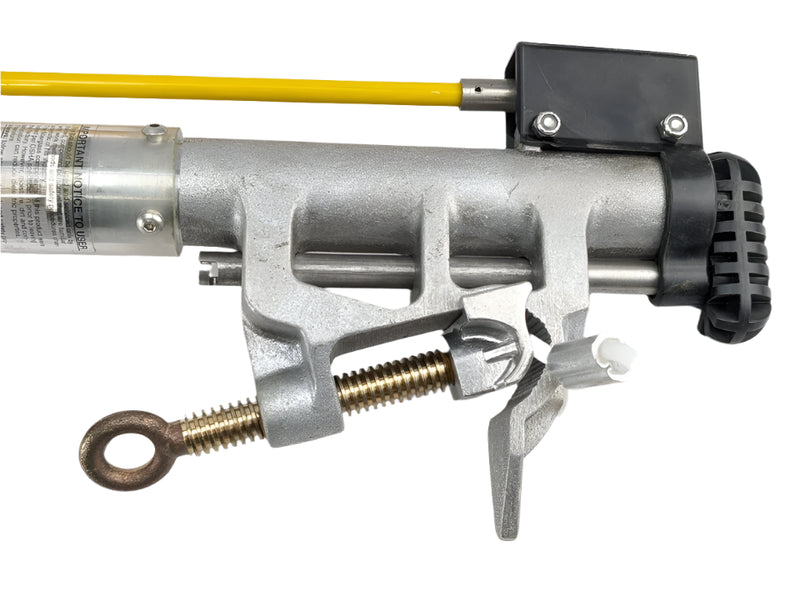

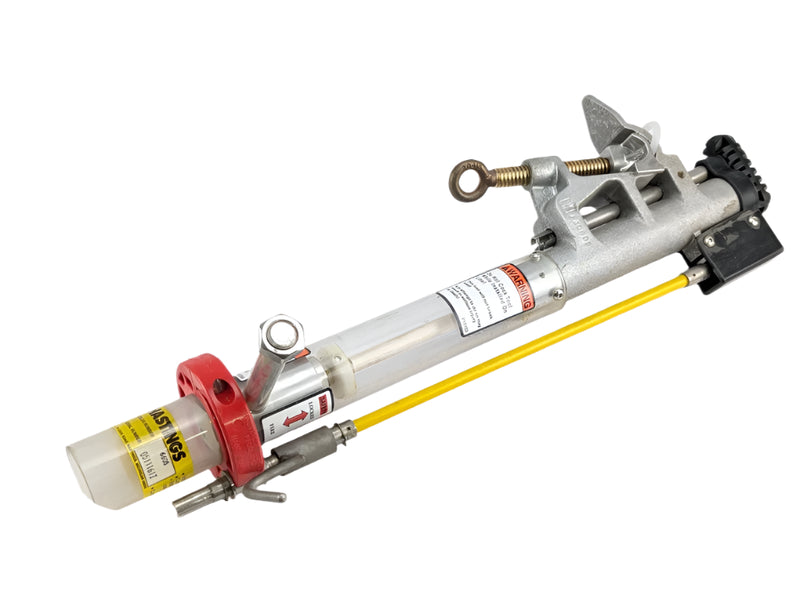

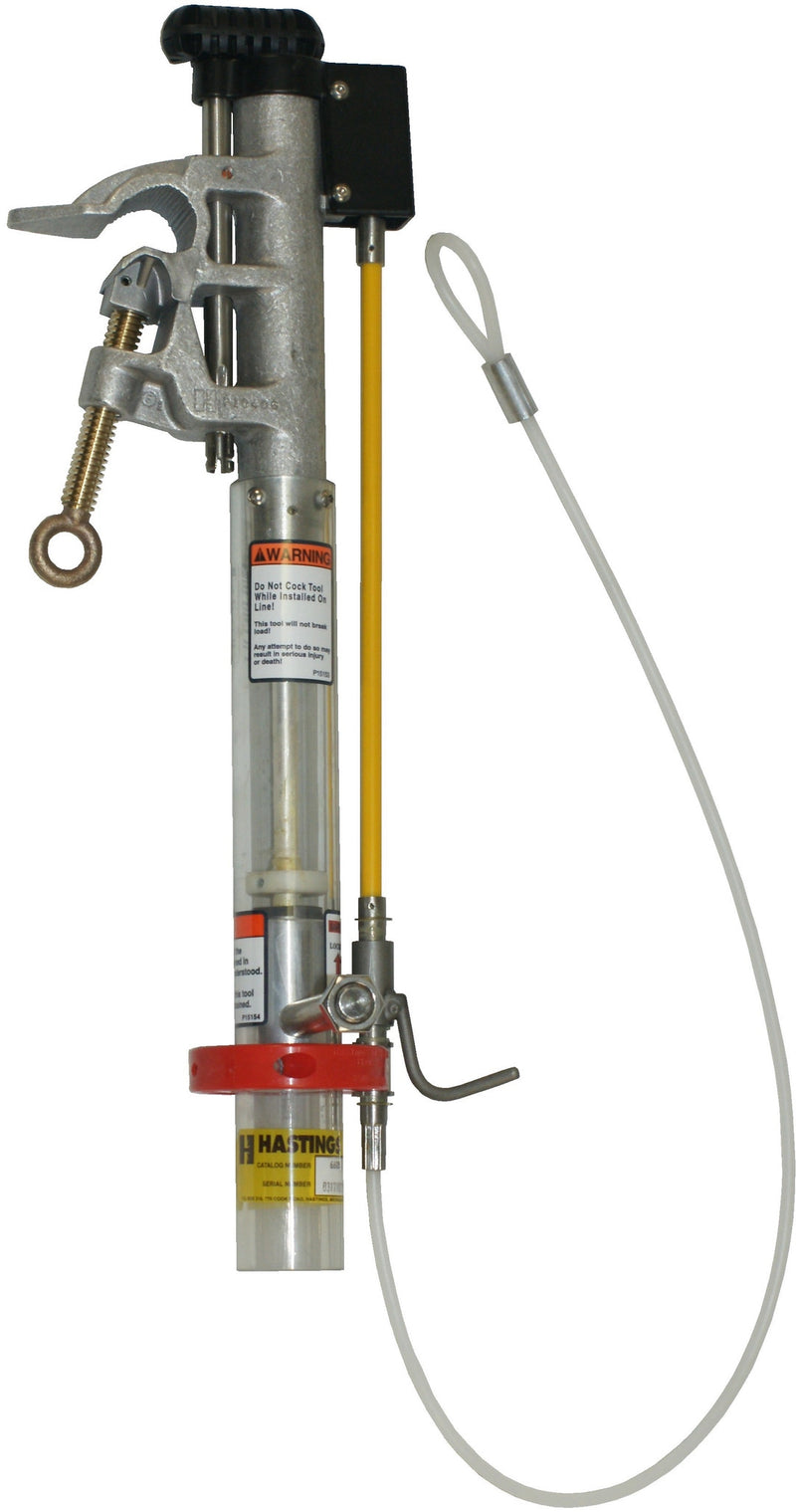

Description:
- Load pick up tool for installation on a cable assembly (clamp & cable sold separately
- Load pick up tool with stud to utilize your ready made jumpers
- Can be installed with a shotgun stick or with rubber gloves, in accordance with your company's safe work practices
- Both tools come completely self contained with cocking tool, firing lanyard, & safety latch
- The head casting is aluminum alloy & also serves as a storage port for the cocking tool
- Clear plastic housing below the head casting allows for quick, easy visual inspection
- Each tool comes complete with an operating & maintenance manual
Features:
Load Pick Up Tool with stud to utilize your ready made jumpers.
- Can be installed with shotgun stick or with rubber gloves, in accordance with your company's safe work practices
- Completely self contained with cocking tool, firing lanyard, and safety latch
- Aluminum alloy head castings, also serves as a storage port for cocking tool
- Clear plastic housing below the head casting allows for quick, easy visual inspection
- Maximum Main Line Range: 1033 MCM 1.25 DIA
- Minimum Main Line Range: 6 SOLID .16 DIA
- KV Rating: 29.2KV maximum
- Current Rating: 300 AMPS maximum
Note: While the maximum rating for each model is stated above, the actual rating will be the lesser of these values, or of the rating of the components used with the Load Pick Up Tool. If 15KV jumper cable is being used, the entire assembly will be rated at 15KV. If the jumper cable is less than 2/0 AWG, the current rating will be reduced accordingly
